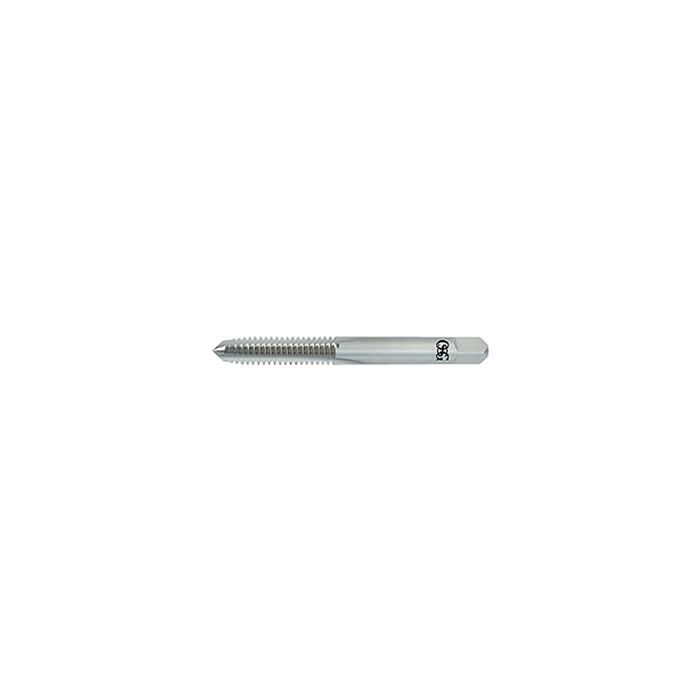

General Purpose 8-32 H7 3FL Plug Tap, OSG 1019800

Specs
Thread Size - Number: No. 8
Thread Type: UNC
Threads Per Inch: 32
Thread Limit: H7
Chamfer Type: Plug (4P)
Major Diameter - Inch: 0.164
Thread Length - Inch (Lc): 0.468503
Tap Drill Size Min - Inch: 0.13
Tap Drill Size Max - Inch: 0.139
Neck Length - Inch (L1): 0.93307
Overall Length - Inch (L): 2.125984
Square Length - Inch (Ik): 0.25
Shank Diameter - Inch (d): 0.168
Square Width - Inch (k): 0.131
STI Thread: No
Substrate: HSS
Coolant Thru: No
Number of Flutes: 3
Cutting Direction: RH

MPN: 1019800
PKG QTY: 1 PC
