Dorian 79740, WCGT-32.52-UEU-DNU10GT Carbide Inserts (10 PCS)
Dorian Tool

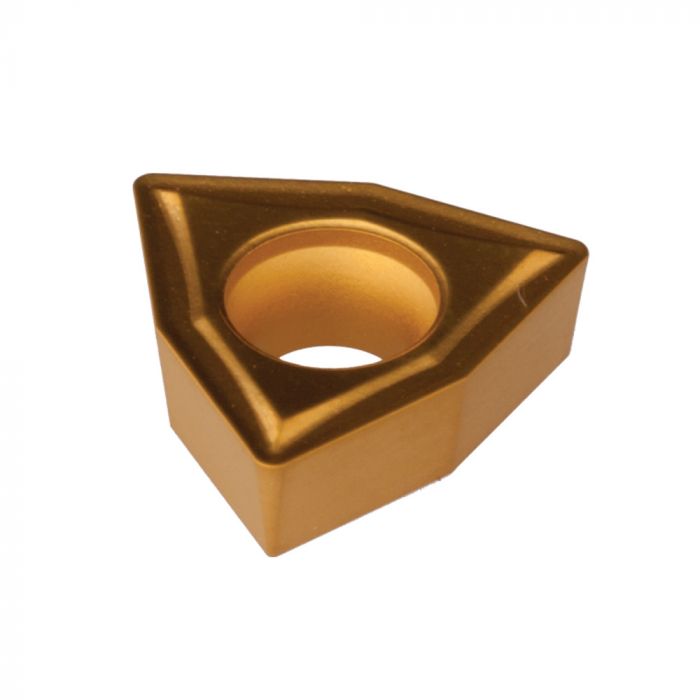

WCGT-32.52-UEU-DNU10GT Carbide Inserts
Technical Specs
Style: WCGT
Chipbreaker: UEU
Workpiece Material: Aluminum, Stainless Steel, Non-Ferrous
Corner Radius: .031 inches
Cutting Angle: 80 degree
Cutting Direction: Neutral
Cut Type: General
Diameter: 3/8 inches
Shape: 80-Degree Trigon
Thickness: 5/32 inches
Rake Type: Positive Rake Angle
Material: Carbide
Grade: DNU10GT
Finish / Coating: Uncoated
Features
First Choice: For General Application of Aluminum, Stainless Steel, Non-Ferrous, with Small Depth of Cut and Low Feed per Revolution at High SFM (Vc), Brittle! Not for interrupted Cut, Wet Working Condition. UEU, Medium molded Chip Breaker and positive Rake Angle. Honed Cutting Edge, for precise chip control and free evacuation. For Universal Turning Application, of High Temp Super Alloys, Ferrous and non Ferrous Metals, at Small to medium Depth (ap) of Cut and Feed Rate per Revolution (fn).
Grade Description
The DNU10GT Uncoated grade, it is a hard micro-grained substrate with hard cutting edge and wear resistant to abrasion. For General Turning Application, of Aluminum, Ferrous and non Ferrous Metals, Plastic and Hardened Steel. at High SFM (Vc) Brittle! Not for interrupted Cut. Wet Working Condition
MPN: 79740
PKG QTY: 10 PCS
