Dorian Tool
Dorian 79661, VBGT-221-UEU-DUP15VT Carbide Inserts (10 PCS)
Dorian Tool

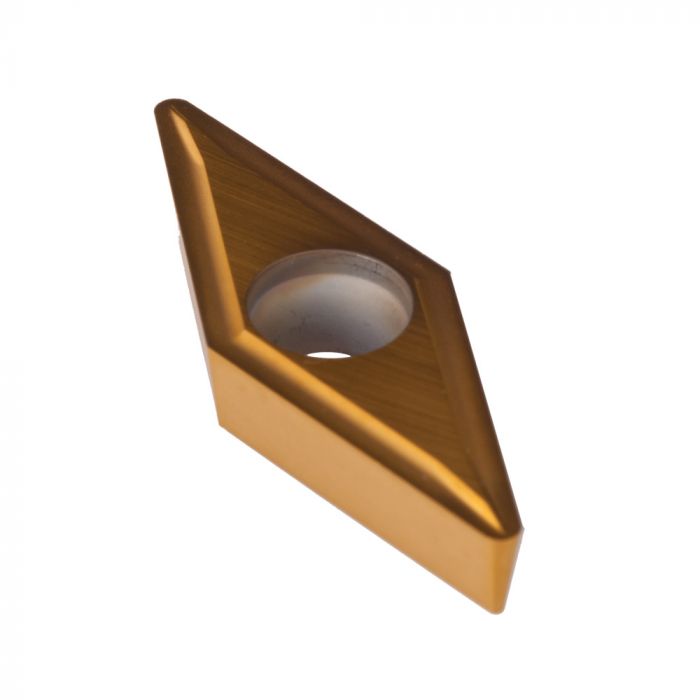

VBGT-221-UEU-DUP15VT Carbide Inserts
Technical Specs
Style: VBGT
Chipbreaker: UEU
Workpiece Material: High Temp and Super Alloys, Multi Materials
Corner Radius: .015 inches
Cutting Angle: 35 degree
Cutting Direction: Neutral
Cut Type: General
Diameter: 1/4 inches
Shape: 35-Degree Diamond
Thickness: 1/8 inches
Rake Type: Positive Rake Angle
Material: Carbide
Grade: DUP15VT
Finish / Coating: PVD Multi Layer Coating
Features
First Choice: For General Application of High Temp and Super Alloys, Multi Materials, with Small Depth of Cut and Low Feed per Revolution at High SFM (Vc), Brittle! Not for interrupted Cut, Dry Working Condition. UEU, Medium molded Chip Breaker and positive Rake Angle. Honed Cutting Edge, for precise chip control and free evacuation. For Universal Turning Application, of High Temp Super Alloys, Ferrous and non Ferrous Metals, at Small to medium Depth (ap) of Cut and Feed Rate per Revolution (fn).
Grade Description
The DUP15VT grade, has a hard, high abrasive and wear resistant substrate, with a Multi-Layer PVD-AlCrN coating, (Aluminum Chromium Nitride) for higher wear and heat resistant. For Finishing Turning Application, of High Temp Super Alloys, Ferrous and non Ferrous Materials, at High SFM (Vc) Brittle! Not for interrupted Cut. Wet or Dry Working Condition
MPN: 79661
PKG QTY: 10 PCS
