Dorian Tool

Dorian 71917, TCMT-32.52-PEM-DPC15HT Carbide Inserts (10 PCS)

$140.14
Only 5 left
-
+
Description


Dorian Tool

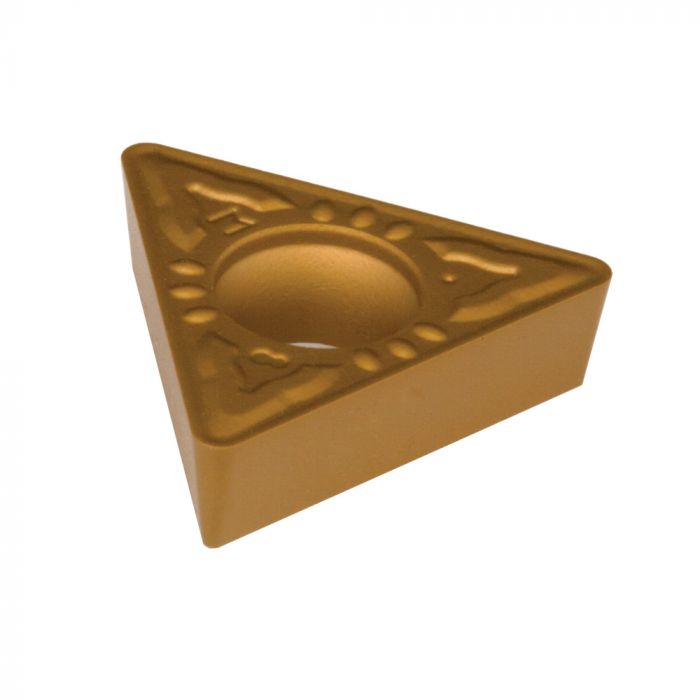

TCMT-32.52-PEM-DPC15HT Carbide Inserts


Technical Specs
Style: TCMT
Chipbreaker: PEM
Workpiece Material: Carbon & Alloy Steel, Stainless Steel, Cast Iron
Corner Radius: .031 inches
Cutting Angle: 60 degree
Cutting Direction: Neutral
Cut Type: Medium
Diameter: 3/8 inches
Shape: 60-Degree Triangle
Thickness: 5/32 inches
Rake Type: Positive Rake Angle
Material: Carbide
Grade: DPC15HT
Finish / Coating: CVD Multi Layer Coating


Features
First Choice: For Medium Application of Carbon & Alloy Steel, Stainless Steel, Cast Iron, with Medium Depth of Cut and Medium Feed per Revolution at High SFM (Vc), Brittle! Not for interrupted Cut, Wet Working Condition. PEM, Medium molded Chip Breaker, Positive Rake Angle and Honed Cutting Edge, for chip control and free evacuation in medium depth of cut. For Universal Turning Application, to machine Carbon & Alloy Steel, Stainless Steel, at Medium Depth of Cut (ap) and Feed Rate per Revolution (fn).


Grade Description
The DPC15HT grade, has a hard, high wear and abrasive resistant substrate with a CVD Multi Layer of Alumina, Titanium Carbonitride Coating, (Al2O3/TiCN/Al2O3/TiCN). High Cutting Speed, for Finishing Turning Application, and Medium to Roughing Application when Turning smooth surface. To cut Carbon Steel, Alloy Steel, Stainless Steel and Cast Iron at High SFM (Vc) Brittle! Not for interrupted Cut


MPN: 71917
PKG QTY: 10 PCS

Technical Specifications
SKU:
73310171917
SUPPLIER:
PKG QTY:
10 PACK
BRAND:
Dorian Tool
MPN:
71917
UPC:
73310171917
