Dorian Tool

Dorian 71910, TCMT-21.50.5-PEF-DPC25UT Carbide Inserts (10 PCS)

$100.98
Only 2 left
-
+
Description


Dorian Tool

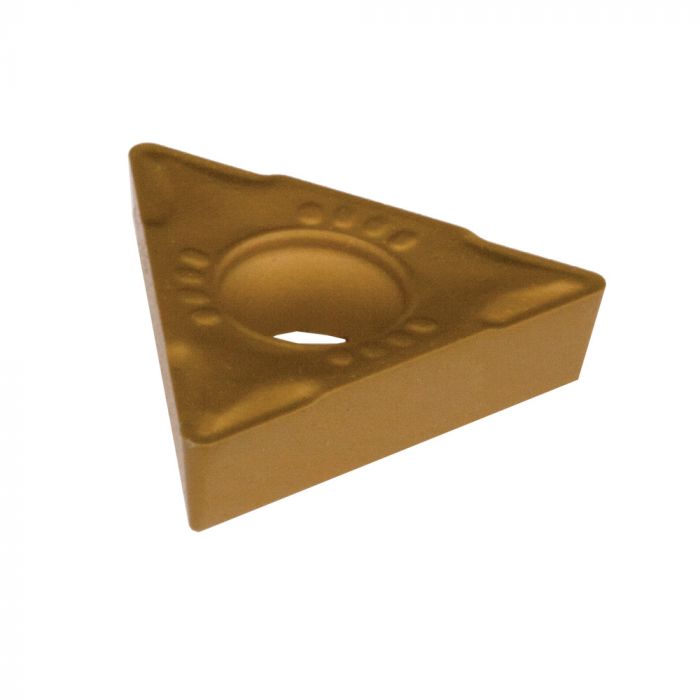

TCMT-21.50.5-PEF-DPC25UT Carbide Inserts


Technical Specs
Style: TCMT
Chipbreaker: PEF
Workpiece Material: Carbon & Alloy Steel, Stainless Steel
Corner Radius: .008 inches
Cutting Angle: 60 degree
Cutting Direction: Neutral
Cut Type: Finishing
Diameter: 1/4 inches
Shape: 60-Degree Triangle
Thickness: 3/32 inches
Rake Type: Positive Rake Angle
Material: Carbide
Grade: DPC25UT
Finish / Coating: CVD Multi Layer Coating


Features
First Choice: For Finishing Application of Carbon & Alloy Steel, Stainless Steel, with Small Depth of Cut and Low Feed per Revolution at Medium SFM (Vc), Light interrupted Cut, Wet Working Condition. PEF, Small molded Chip Breaker. Positive Rake Angle and Honed Cutting Edge, to control the length of chips in small depth of cut. For Finishing Turning Application, to machine Carbon & Alloy Steel, Stainless Steel and Cast Iron, at Small Depth (ap) of Cut and Feed Rate per Revolution (fn).


Grade Description
The DPC25UT grade, has a hard, tough, wear and abrasive Resistant Substrate with a CVD Multi Layer of Alumina, Titanium Carbonitride Coating, (Al2O3/TiCN/Al2O3/TiCN). Medium Cutting Speed, for Universal Turning Application, from Finishing to Roughing. To cut Carbon Steel, Alloy Steel and Stainless Steel at Medium SFM (Vc) for Light interrupted Cut


MPN: 71910
PKG QTY: 10 PCS

Technical Specifications
SKU:
73310171910
SUPPLIER:
PKG QTY:
10 PACK
BRAND:
Dorian Tool
MPN:
71910
UPC:
73310171910
