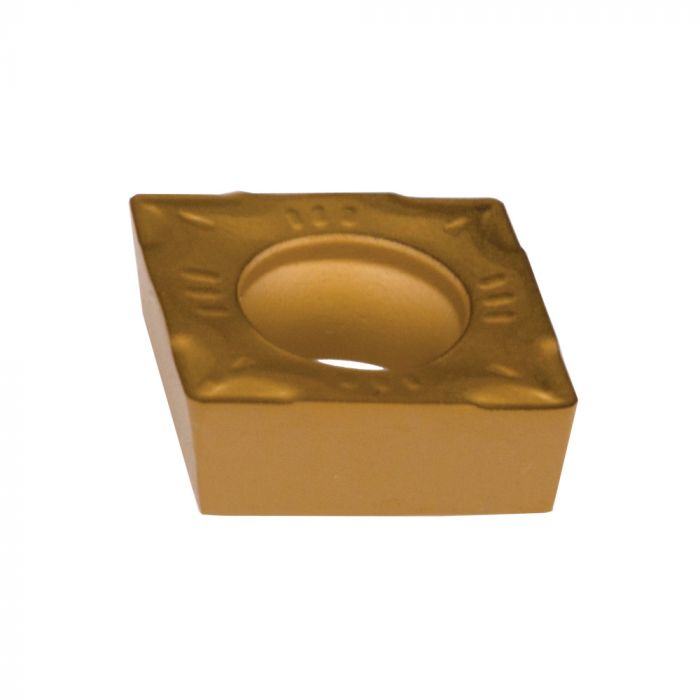

Dorian 71879, CCMT-21.52-PEF-DPC15HT Carbide Inserts (10 PCS)
Dorian Tool
CCMT-21.52-PEF-DPC15HT Carbide Inserts
Technical Specs
Style: CCMT
Chipbreaker: PEF
Workpiece Material: Carbon & Alloy Steel, Stainless Steel, Cast Iron
Corner Radius: .031 inches
Cutting Angle: 80 degree
Cutting Direction: Neutral
Cut Type: Finishing
Diameter: 1/4 inches
Shape: 80-Degree Diamond
Thickness: 3/32 inches
Rake Type: Positive Rake Angle
Material: Carbide
Grade: DPC15HT
Finish / Coating: CVD Multi Layer Coating
Features
First Choice: For Finishing Application of Carbon & Alloy Steel, Stainless Steel, Cast Iron, with Small Depth of Cut and Low Feed per Revolution at High SFM (Vc), Brittle! Not for interrupted Cut, Wet Working Condition. PEF, Small molded Chip Breaker. Positive Rake Angle and Honed Cutting Edge, to control the length of chips in small depth of cut. For Finishing Turning Application, to machine Carbon & Alloy Steel, Stainless Steel and Cast Iron, at Small Depth (ap) of Cut and Feed Rate per Revolution (fn).
Grade Description
The DPC15HT grade, has a hard, high wear and abrasive resistant substrate with a CVD Multi Layer of Alumina, Titanium Carbonitride Coating, (Al2O3/TiCN/Al2O3/TiCN). High Cutting Speed, for Finishing Turning Application, and Medium to Roughing Application when Turning smooth surface. To cut Carbon Steel, Alloy Steel, Stainless Steel and Cast Iron at High SFM (Vc) Brittle! Not for interrupted Cut
MPN: 71879
PKG QTY: 10 PCS
