Dorian Tool

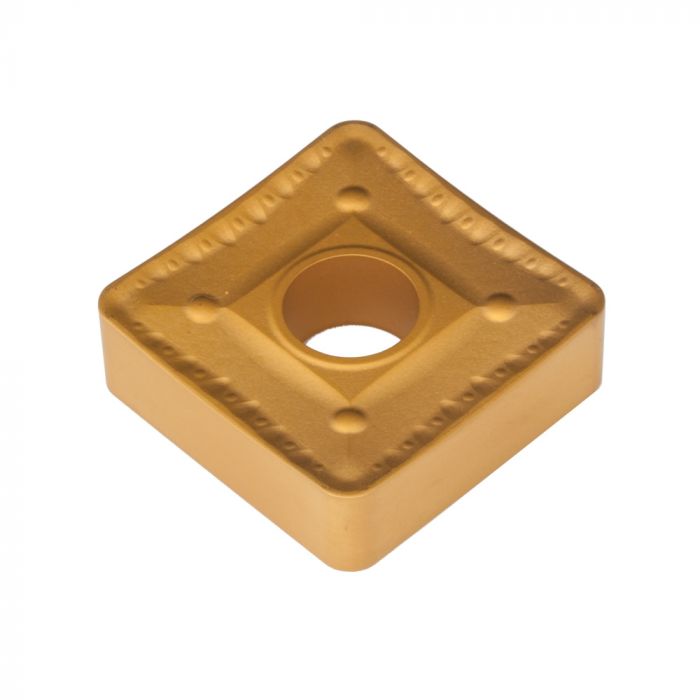

Dorian 70224, SNMM-856-PST-DPC15HT Carbide Inserts (10 PCS)
Dorian Tool
SNMM-856-PST-DPC15HT Carbide Inserts
Technical Specs
Style: SNMM
Chipbreaker: PST
Workpiece Material: Carbon & Alloy Steel, Stainless Steel, Cast Iron
Corner Radius: .093 inches
Cutting Angle: 90 degree
Cutting Direction: Neutral
Cut Type: XX Heavy Roughing
Diameter: 1.0 inches
Shape: Square
Thickness: 5/16 inches
Rake Type: Positive Rake Angle
Material: Carbide
Grade: DPC15HT
Finish / Coating: CVD Multi Layer Coating
Features
First Choice: For XX Heavy Roughing Application of Carbon & Alloy Steel, Stainless Steel, Cast Iron, with Large Depth of Cut and High Feed per Revolution at High SFM (Vc), Brittle! Not for interrupted Cut, Wet Working Condition. PST, Single Sided Molded Chip Breaker. Strong and Extra Heavy Duty Negative Honed Cutting Edge, for interrupt and large depth of cuts. For Heavy Duty Roughing Turning Application, to machine castings and forgings of Carbon & Alloy Steel, Stainless Steel and Cast Iron, at Large Depth of Cut (ap) and Feed Per Revolution (fn).
Grade Description
The DPC15HT grade, has a hard, high wear and abrasive resistant substrate with a CVD Multi Layer of Alumina, Titanium Carbonitride Coating, (Al2O3/TiCN/Al2O3/TiCN). High Cutting Speed, for Finishing Turning Application, and Medium to Roughing Application when Turning smooth surface. To cut Carbon Steel, Alloy Steel, Stainless Steel and Cast Iron at High SFM (Vc) Brittle! Not for interrupted Cut
MPN: 70224
PKG QTY: 10 PCS
