Dorian Tool

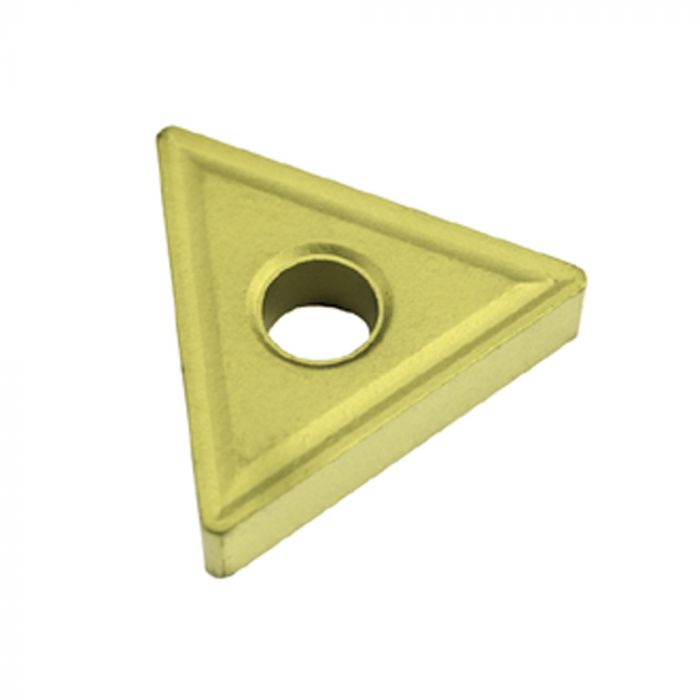

Dorian 70086, TNMG-221-UGN-DUC25UT Carbide Inserts (10 PCS)

$91.41
-
+
Description


Dorian Tool
TNMG-221-UGN-DUC25UT Carbide Inserts


Technical Specs
Style: TNMG
Chipbreaker: UGN
Workpiece Material: Multi Materials
Corner Radius: .015 inches
Cutting Angle: 60 degree
Cutting Direction: Neutral
Cut Type: General
Diameter: 1/4 inches
Shape: 60-Degree Triangle
Thickness: 1/8 inches
Rake Type: Positive Rake Angle
Material: Carbide
Grade: DUC25UT
Finish / Coating: CVD Multi Layer Coating


Features
First Choice: For General Application of Multi Materials, with Medium Depth of Cut and Medium Feed per Revolution at Medium SFM (Vc), Light interrupted Cut, Wet Working Condition. EG, Molded Chip breaker, Medium Chip Breaker Geometry, Positive Rake Angle and Medium Honed Cutting Edge, for chip control and free evacuation in medium depth of cut. For General Purpose Turning Application, of Ferrous and non Ferrous Materials, at Medium Depth of Cut (ap) and Feed Rate per Revolution (fn).


Grade Description
The DUC25UT grade, has a balanced substrate composition between hard & tough, and wear & shock resistant, with a Multi Layer of CVD TiN/TiCN/Al2O3/TiN, Makes this grade best suitable for general turning application of all ferrous and non ferrous materials, (not for Aluminum or Plastics) at Medium SFM (Vc) for Light interrupted Cut, Wet Working Condition


MPN: 70086
PKG QTY: 10 PCS

Technical Specifications
SKU:
73310170086
SUPPLIER:
PKG QTY:
10 PACK
BRAND:
Dorian Tool
MPN:
70086
UPC:
73310170086
