Dorian 69891, TNMA-332-KEU-DKC15RT Carbide Inserts (10 PCS)
Dorian Tool

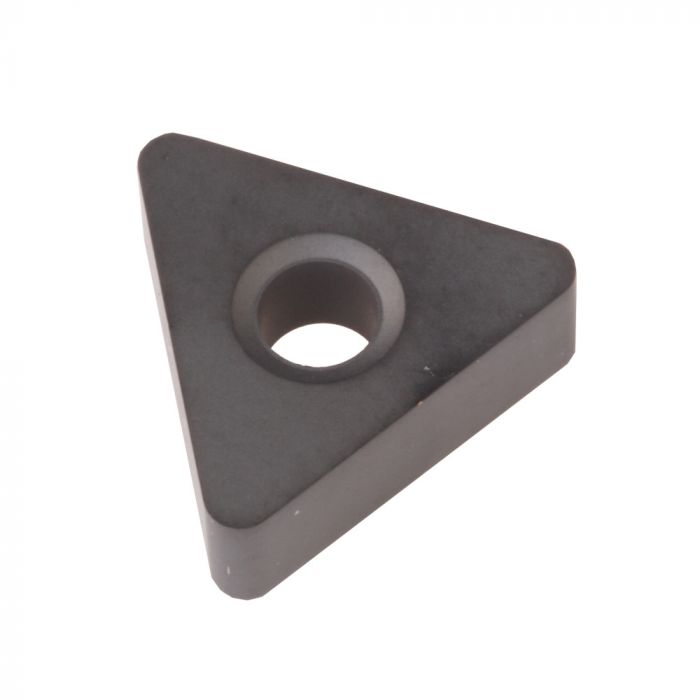

TNMA-332-KEU-DKC15RT Carbide Inserts
Technical Specs
Style: TNMA
Chipbreaker: KEU
Workpiece Material: Cast Iron, Hardened Steel, Non-Ferrous
Corner Radius: .031 inches
Cutting Angle: 60 degree
Cutting Direction: Neutral
Cut Type: Universal
Diameter: 3/8 inches
Shape: 60-Degree Triangle
Thickness: 3/16 inches
Rake Type: Negative Rake Angle
Material: Carbide
Grade: DKC15RT
Finish / Coating: CVD Multi Layer Coating
Features
First Choice: For Universal Application of Cast Iron, Hardened Steel, Non-Ferrous, with Medium Depth of Cut and Medium Feed per Revolution at Low SFM (Vc), For interrupted Cut, Wet/Dry Working Condition. KEU, Ground Surface, no Chip Breaker, Negative Rake Angle, and Medium Honed Cutting Edge, For General Turning Application, of Cast Iron and Hardened Steel, at Medium Depth of Cut (ap) and Feed Rate per Revolution (fn).
Grade Description
The DKC15RT grade, has a tough and Impact Resistant Substrate with a CVD Multi Layer of Alumina, Titanium Carbonitride Coating, ( Al2O3/TiCN/Al2O3/TiCN) Low Cutting Speed, for Roughing Application with Unstable surface and Castings. For cutting Cast Iron, Hardened Steel, and all non Ferrous Material. Low SFM (Vc) for heavy interrupted Cut.
MPN: 69891
PKG QTY: 10 PCS
