Dorian Tool

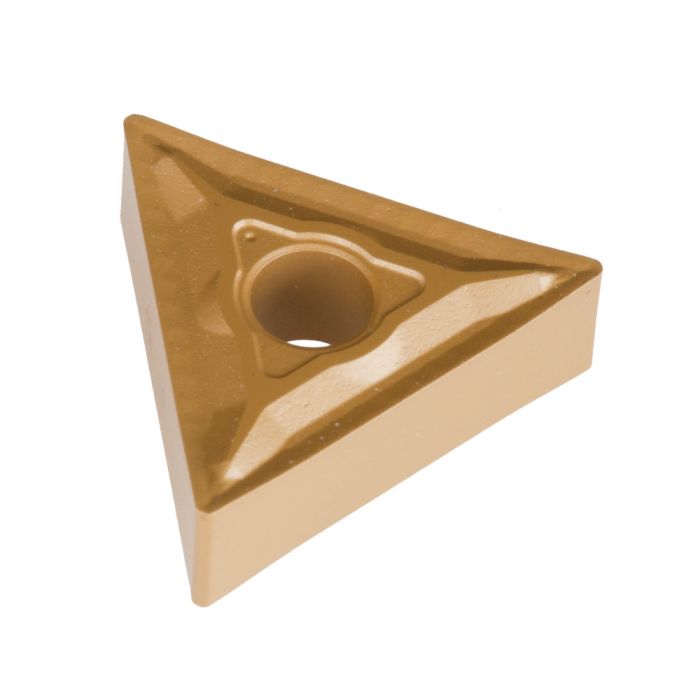

Dorian 69858, TNMG-332-UEM-DPC35RT Carbide Inserts (10 PCS)
Dorian Tool
TNMG-332-UEM-DPC35RT Carbide Inserts
Technical Specs
Style: TNMG
Chipbreaker: UEM
Workpiece Material: Carbon & Alloy Steel, Stainless Steel
Corner Radius: .031 inches
Cutting Angle: 60 degree
Cutting Direction: Neutral
Cut Type: Medium
Diameter: 3/8 inches
Shape: 60-Degree Triangle
Thickness: 3/16 inches
Rake Type: High Positive Rake Angle
Material: Carbide
Grade: DPC35RT
Finish / Coating: CVD Multi Layer Coating
Features
First Choice: For Medium Application of Carbon & Alloy Steel, Stainless Steel, with Medium Depth of Cut and Medium Feed per Revolution at Low SFM (Vc), For interrupted Cut, Wet Working Condition. UEM, Molded Chip breaker. Positive Chip Breaker Geometry with High Positive Rake Angle and Small Honed Cutting Edge, to control the length of chips in small depth of cut. Precision Finishing to Light Roughing Turning and Boring Application, to machine Carbon & Alloy Steel, Stainless Steel and Cast Iron, at Small Depth (ap) of Cut and Feed Rate per Revolution (fn).
Grade Description
The DPC35RT grade, has a tough and Impact Resistant Substrate with a CVD Multi Layer of Alumina, Titanium Carbonitride Coating, ( Al2O3/TiCN/Al2O3/TiCN) Low Cutting Speed, for Roughing Application with Unstable surface, Forgings and Castings of Carbon Steel, Alloy Steel, Stainless Steel. Low SFM (Vc) for heavy interrupted Cut
MPN: 69858
PKG QTY: 10 PCS
