Dorian Tool

Dorian 69488, DNMG-443-PEX-DPC25UT Carbide Inserts (10 PCS)

$181.80
-
+
Description


Dorian Tool

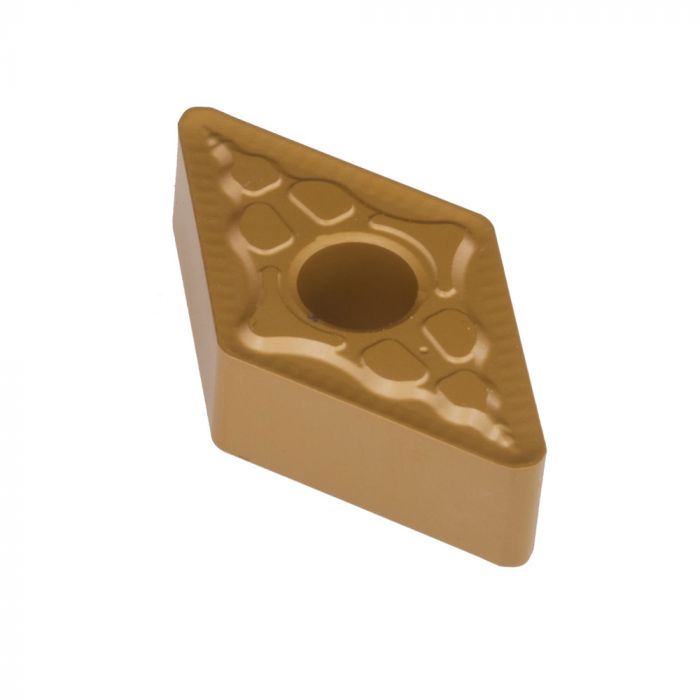

DNMG-443-PEX-DPC25UT Carbide Inserts


Technical Specs
Style: DNMG
Chipbreaker: PEX
Workpiece Material: Carbon & Alloy Steel, Stainless Steel
Corner Radius: .046 inches
Cutting Angle: 55 degree
Cutting Direction: Neutral
Cut Type: High Performance
Diameter: 1/2 inches
Shape: 55-Degree Diamond
Thickness: 1/4 inches
Rake Type: Positive Rake Angle
Material: Carbide
Grade: DPC25UT
Finish / Coating: CVD Multi Layer Coating


Features
First Choice: For High Performance Application of Carbon & Alloy Steel, Stainless Steel, with Medium Depth of Cut and Medium Feed per Revolution at Medium SFM (Vc), Light interrupted Cut, Wet Working Condition. PEX, Wiper Nose Technology for High Surface Finish Turning Application. Double Leading Angle, Triple nose Radius and Wiper trailing angle.. With a Molded Chip breaker, Medium Chip Breaker Geometry, Positive Rake Angle and Medium Honed Cutting Edge. The trailing cutting edge burnish the cutting surface with a high surface finish and close tolerance. For Carbon & Alloy Steel, Stainless Steel, at Medium Depth of Cut (ap) and High Feed Rate per Revolution (fn).


Grade Description
The DPC25UT grade, has a hard, tough, wear and abrasive Resistant Substrate with a CVD Multi Layer of Alumina, Titanium Carbonitride Coating, (Al2O3/TiCN/Al2O3/TiCN). Medium Cutting Speed, for Universal Turning Application, from Finishing to Roughing. To cut Carbon Steel, Alloy Steel and Stainless Steel at Medium SFM (Vc) for Light interrupted Cut


MPN: 69488
PKG QTY: 10 PCS

Technical Specifications
SKU:
73310169488
SUPPLIER:
PKG QTY:
10 PACK
BRAND:
Dorian Tool
MPN:
69488
UPC:
73310169488
