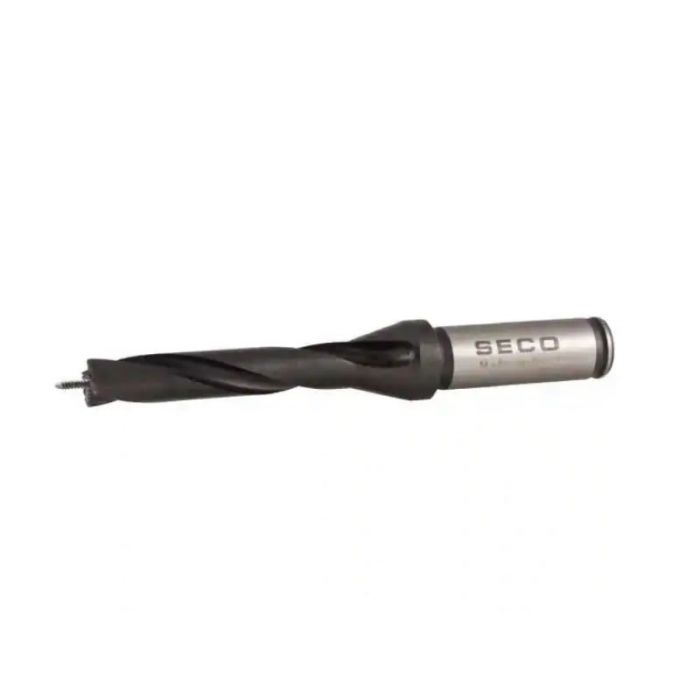

Seco Indexable Drill Body, to 14.99mm, 5xD, 3.15" Max Depth, 02445838
$375.36
Only 4 left
Description
Seco
Indexable Drill Body, to 14.99mm, 5xD, 3.15" Max Depth, 02445838
New, Open box, missing manufacturer packaging
Specs
Series: SD105
Minimum Drill Diameter (mm): 14.00
Minimum Drill Diameter (Decimal Inch): 0.5512
Maximum Drill Diameter (mm): 14.99
Maximum Drill Diameter (Decimal Inch): 0.5902
Drill Depth by Diameter Ratio: 5xD
Maximum Drill Depth (Decimal Inch): 3.1500
Shank Diameter (Inch): 0.6250
Shank Diameter (Decimal Inch): 0.6250
Insert Style: SD100 (not included, sold seperately)
Toolholder Style: SD105
Through Coolant: No
Shank Type; Weldon Flat
Flute Length (Decimal Inch): 3.5200
Body Length (Decimal Inch): 4.3070
Overall Length (Decimal Inch): 6.1970
Shank Length (Decimal Inch): 1.8900
MSRP: $375.36
MPN: 02445838
PKG QTY: 1PC
