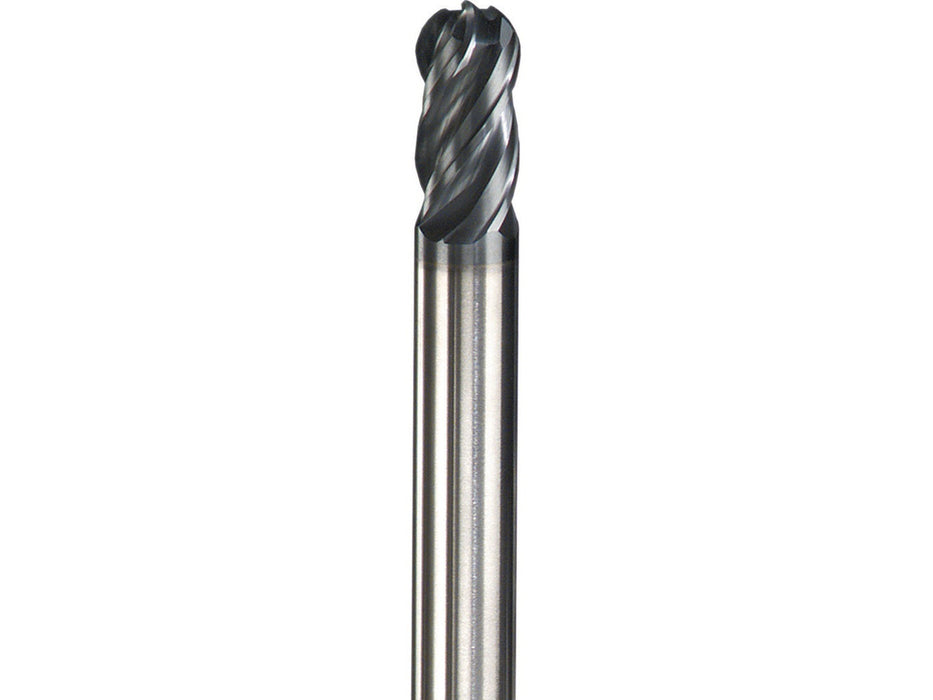

SGS 3/8" 4-FL Ball Nose Carbide End Mill, Altin, 36346

SGS
3/8" 4-FL Ball Nose Carbide End Mill, Altin, 36346

Specs
Mill Diameter (Decimal Inch): 0.375
Mill Diameter (Inch): 3/8
Number Of Flutes: 4
End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.875
Length of Cut (Inch): 7/8
Shank Diameter (Inch): 3/8
Overall Length (Inch): 2-1/2
Overall Length (Decimal Inch): 2.500
Single Or Double End: Single
Coating/Finish Family: AlTiN
Centercutting: Yes
Cutting Direction: Right Hand
Flute Direction: Right Hand
Extended Reach: No
Coolant Through: No
Helix Angle: 35-38
Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code: P; S; K; M
Coating/Finish: AlTiN
Variable Helix: Yes
Variable Index: Yes
Chipbreaker: Yes
Flute Type: Spiral
Material Grade: Micrograin
Length Type: Regular
Mill Diameter Tolerance: +0.0000/-0.0020 in
Shank Diameter Tolerance: +0.0000/-0.0043 in
Series: Z1B
System Of Measurement: Fractional Inch
Material Removal Type: Finishing
Country of Origin: UNITED STATES

MPN: 36346
PKG QTY: 1 PC

Location: SUR-BCS-111
