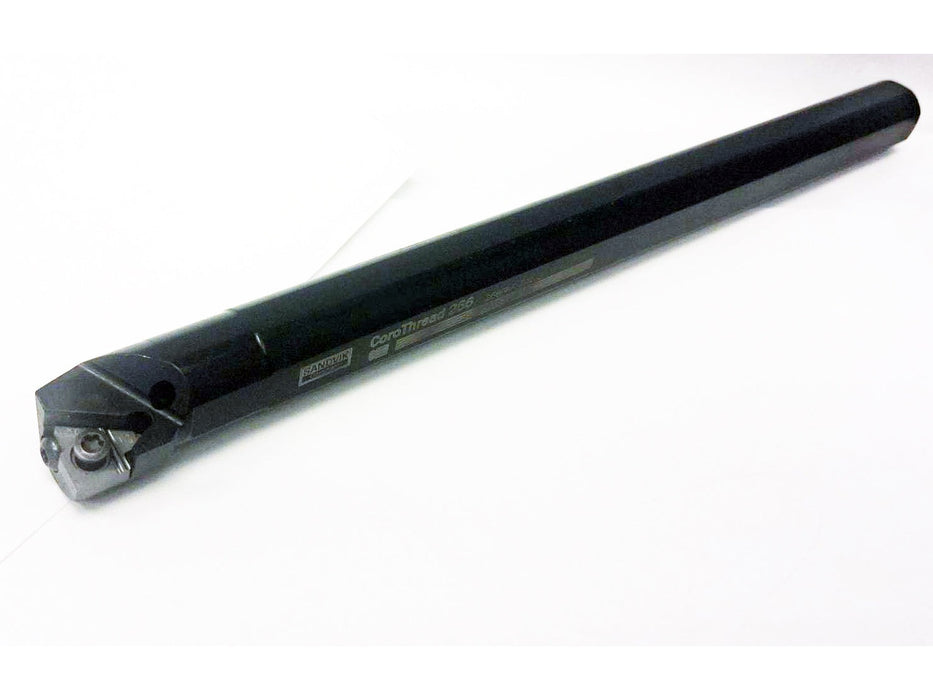

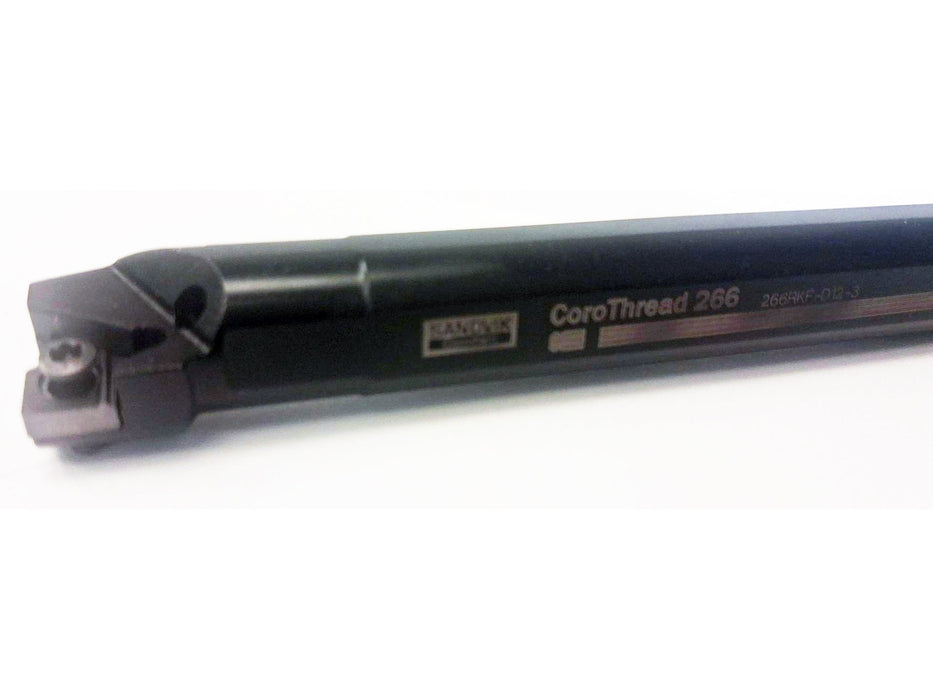

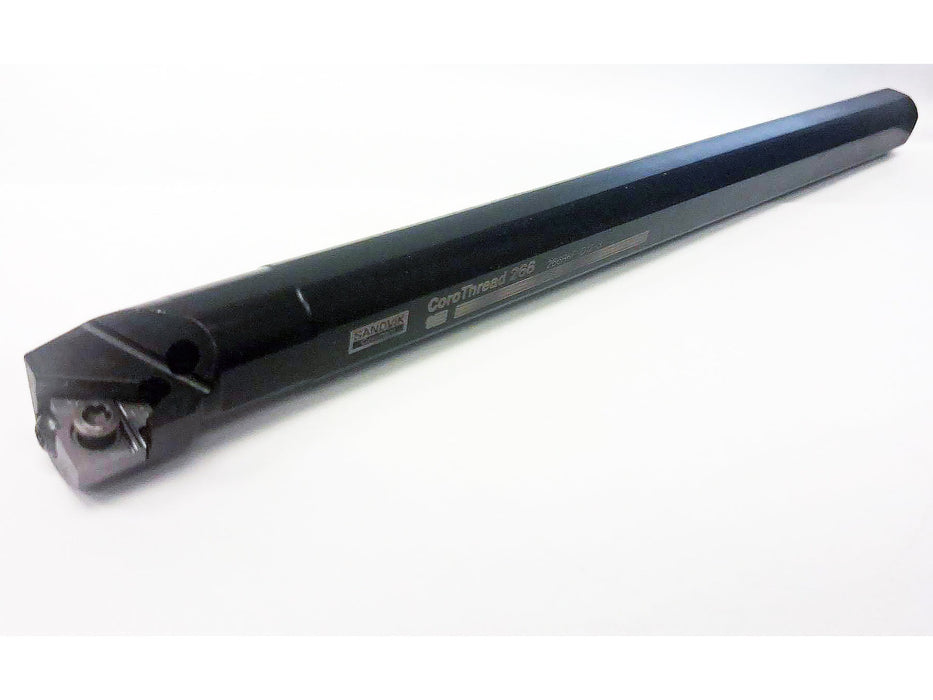

Sandvik Coromant 266RKF-D12-3 INT / EXT RH 3/4" Tool Holder, Coolant, 5758086

Sandvik Coromant
Indexable Threading Toolholder: Internal & External, Right Hand, 18.01 x 3/4" Shank Steel, 0.98" Min Bore Dia, 3/8" Insert Inscribed Circle

New / Open Box

Specs
Holder: Right Hand
Shank Width/Diameter (Decimal Inch): 0.7500
Shank Width/Diameter (Inch): 3/4
Toolholder Style: 266RKF
Insert Compatibility: 266RL to 16
Insert Holding Method: Screw
Shank Height (mm): 18.01
Shank Height (Decimal Inch): 0.7090
Shank Length (Inch): 10
Shank Length (Decimal Inch): 10.0000
Overall Length (Inch): 10
Overall Length (Decimal Inch): 10.0000
Minimum Bore Diameter (Decimal Inch): 0.9800
Head Length (Inch): 2-1/4
Head Length (Decimal Inch): 2.2500
Maximum Depth of Cut (Decimal Inch): 2.2500
Back of Bar to Cutting Edge (Inch): 10
Back of Bar to Cutting Edge (Decimal Inch): 10.0000
Center to Cutting Edge (mm): 14.00
Center to Cutting Edge (Decimal Inch): 0.5510
Insert Inscribed Circle (Decimal Inch): 0.3750
Insert Inscribed Circle (Inch): 3/8
Neck Diameter (Decimal Inch): 0.7500
UNSPSC Code: 23291800
Toolholder Material: Steel
Coolant Through: Yes
Series: CoroThread 266

MPN: 5758086
PKG QTY: 1 PC

Location: SUR-S2S-111
