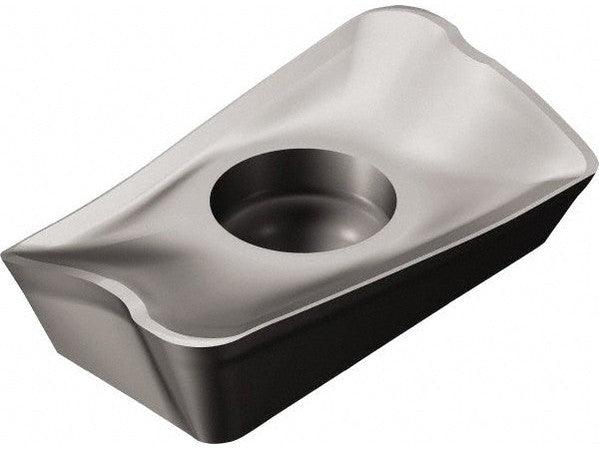

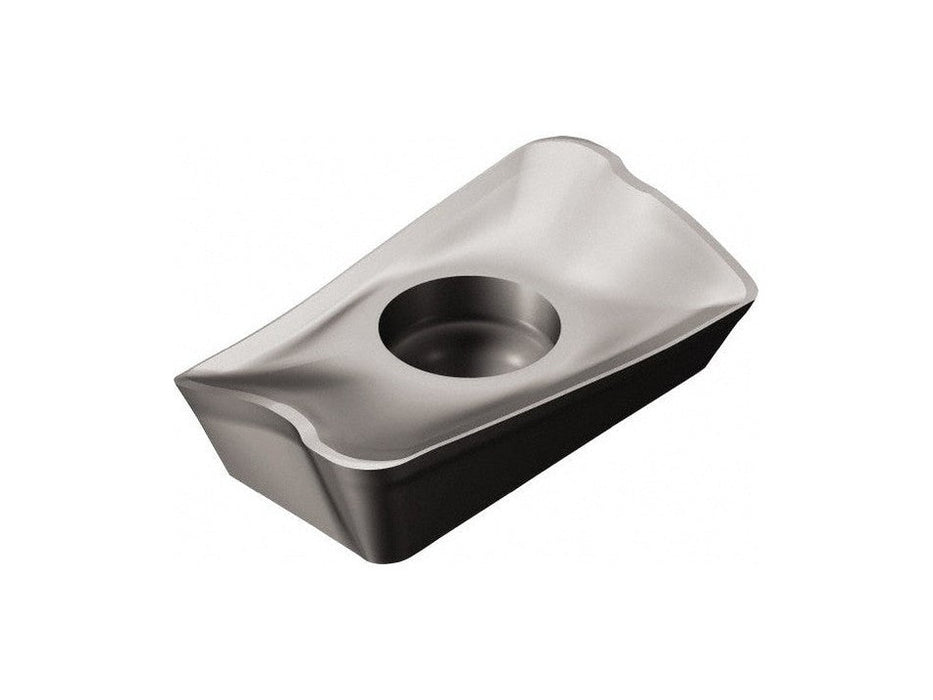

Sandvik R390-11 T3 08E-NL H13A Carbide Inserts (10 PCS) 5745652

Sandvik
R390-11 T3 08E-NL H13A Carbide Inserts (10 PCS) 5745652

Specs
Insert Style: R390
Insert Size: 11
Insert Material: Solid Carbide
Insert Shape: Parallelogram
Manufacturer Grade: H13A
Corner Radius (Decimal Inch): 0.0315
Corner Radius (mm): 0.80
Number Of Cutting Edges: 2
Thickness (Decimal Inch - 4 Decimals): 0.1413
Thickness (mm): 3.59
Coating/Finish: Bright/Uncoated
Insert Size Code: 11T308
Material Grade: S20; N15; K20
Inscribed Circle (Decimal Inch): 0.2677
Inscribed Circle (mm): 6.80
Thickness Range (Decimal Inch): 0.1250 to 0.1500
Corner Radius (Inch): 1/32
Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000
Length Range (Decimal Inch): 0.3200 to 0.4000
Insert Hand: Right Hand
Maximum Depth of Cut (mm): 10.00
Maximum Depth of Cut (Decimal Inch): 0.3937
Series: R390    Coating Process: Uncoated
Hole Diameter (mm): 0.11
Hole Diameter (Decimal Inch): 0.1102
Rake: Positive
Primary Workpiece Material: Non-Ferrous Metal
Primary Workpiece Material Code: N
Ansi Code: R390-11 T3 08E-NL H13A
Iso Code: R390-11 T3 08E-NL H13A
Standards: ISO; ANSI
Cutting Edge Style: Corner Rounded
Manufacturers Catalog Number: R390-11 T3 08E-NL H13A
Cutter Series Compatibility: M-32;
R390 Chip Breaker: NL
Material Application: Non-Ferrous Metal
Insert Holding Method: Screw
Coating Classification: Uncoated
Single or Double Sided Insert: Single
Included Angle Degree: 90
Length (mm): 10.00
Width (Decimal Inch - 4 Decimals): 0.2677
Width (mm - 2 Decimals): 6.80
Multi-Use Tool: Yes
Length (Decimal Inch - 4 Decimals): 0.3937

MPN: 5745652
PKG QTY: 10 PCS
