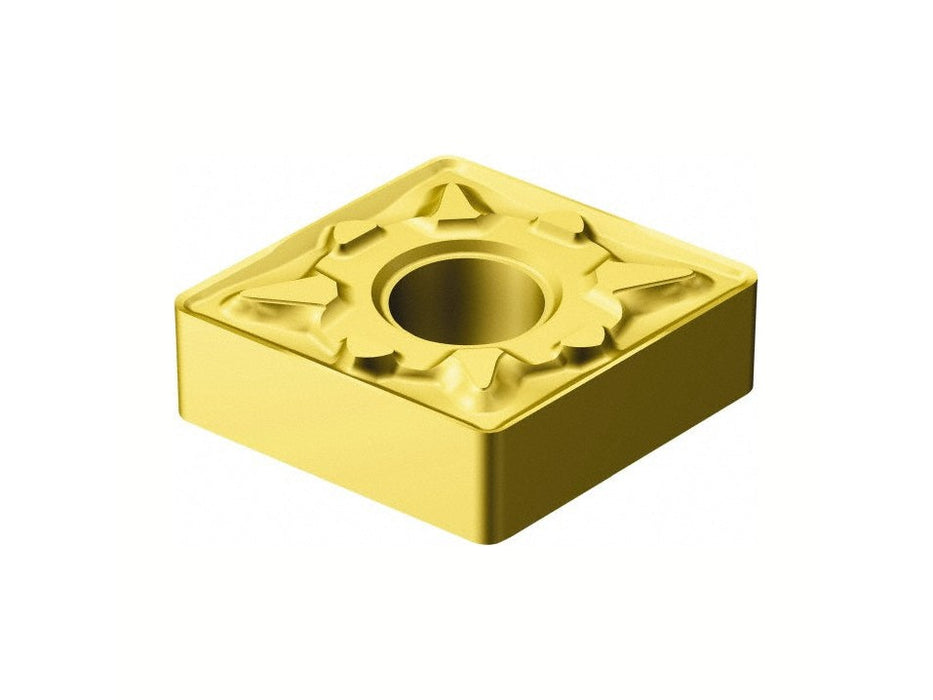

CNMG 432-MM 2025 Sandvik Carbide Inserts (10 PCS) 5724399

Sandvik Coromant
CNMG 432-MM 2025 Sandvik Carbide Inserts (10 PCS) 5724399

Specs
Insert Style: CNMG
ANSI Size Code: 432
ISO Size Code: 120408
Insert Shape: C - Diamond (Rhombic):80-Deg
Included Angle: 80.00-Deg
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Inscribed Circle (mm): 12.70
Corner Radius (Inch): 1/32
Corner Radius (mm): 0.79
Corner Radius (Decimal Inch): 0.0313
Insert Material: Carbide
Manufacturer Grade: 2025
Coating/Finish: TiCN; TiN; AI2O3
Relief Angle: 0.000
Wiper Edge: No
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1875
Insert Thickness: 4.76
Insert Hand: Neutral
Series: T-Max P
Chip Breaker Operation: Medium Machining; Roughing
Grade Characteristics: Stainless Steel (M) - High Wear-Resistance to High Toughness
Side Clearance: Negative
Number Of Cutting Edges: 4
Insert Shape Code: C
Hole Diameter (Decimal Inch): 0.2030
Hole Diameter (mm): 5.16
ANSI Insert Code: CNMG432
ISO Insert Code: CNMG120408
Insert Holding Method: Pin; Clamp
Clearance Code: N
Tolerance Code: M
Coating Process: CVD
Length Range (Decimal Inch): 0.4000 - 0.5000
Insert Length (Decimal Inch): 0.4762
Insert Length (mm): 12.10
Primary Workpiece Material: Stainless Steel
Primary Workpiece Material Code: M
Iso Code: CNMG 12 04 08-MM 2025
Chip Breaker: MM
UNSPSC Code: 23242105
Insert Size Code: 432
Country of Origin: UNITED STATES

MPN: 5724399
PKG QTY: 10 PCS
