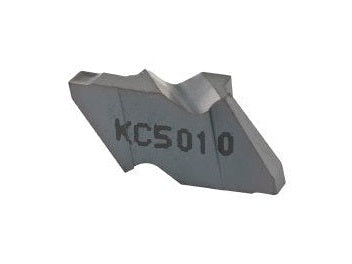

NG2M200RK KC5010 Carbide Grooving Inserts (10 PCS) Kennametal 1818484
Description
Kennametal
NG2M200RK KC5010 Carbide Grooving Inserts (10 PCS) TiAlN Finish, Right Hand, 2.00 mm Cutting Width, 2.79 mm Max Depth, Series Top Notch, 1818484
Specs
Insert Style: NG
Cutting Width (Decimal Inch): 0.0787
Cutting Width (mm): 2.00
Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.1098
Maximum Depth of Cut (mm): 2.79
Insert Material: Carbide
Manufacturer Grade: KC5010
Full Radius: No
Corner Radius (Decimal Inch): 0.0075
Corner Radius (mm): 0.19
Rake: Positive
Measurement Type: Metric
Insert Size: 2M200
Material Grade: C3; C4
Maximum Depth Of Cut Range (Decimal Inch): 0.1000 to 0.1500
Maximum Depth Of Cut Range (mm): 2.00 to 3.00
Lead Angle: 3
Multi-use Tool: No
Series: Top Notch
Coating Process: PVD
Rake Angle: 10
UNSPSC Code: 23242105
Chip Breaker: K
MSC/Manufacturer Number: NG2M200RK
Insert Height (Decimal Inch): 0.2190
Included Angle Degree: 55
Coating/Finish: TiAlN
Country of Origin: UNITED STATES
MPN: 1818484
PKG QTY: 10 PCS
