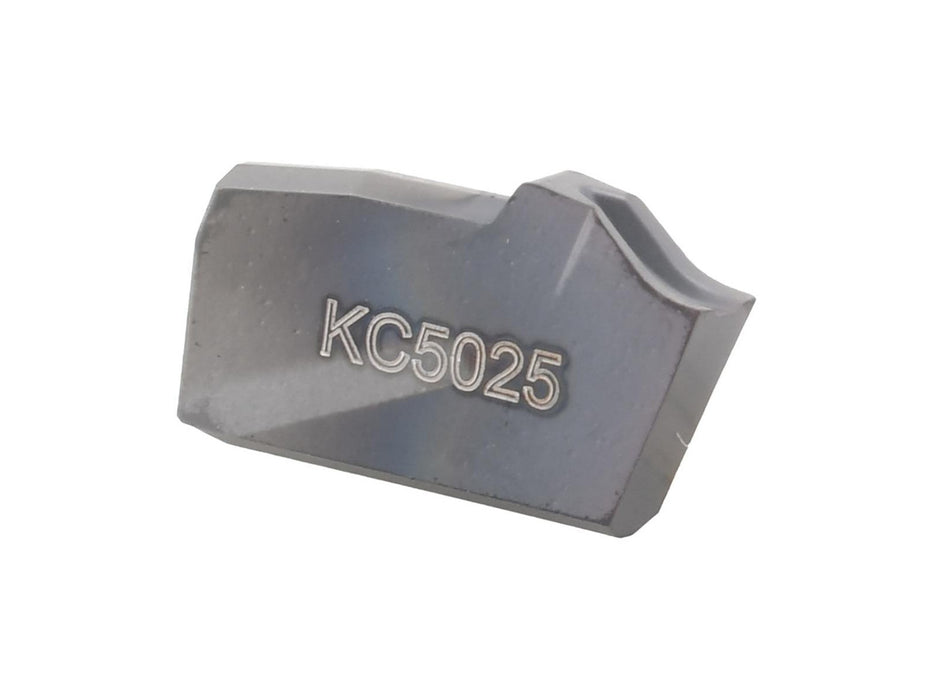

Kennametal A2022L06CF02 KC5025 Carbide Cut-Off Inserts (5 PCS) 1790187

Kennametal
A2022L06CF02 KC5025, Carbide Cut-Off Inserts (5 PCS), 1790187, 2.20 mm (0.0866") Cutting Width, 6 deg Lead Angle, Left Hand, Series A2

Specs
Insert Style: A2
Insert Size Code: 022
Insert Material: Carbide
Manufacturer Grade: KC5025
Cutting Width (Decimal Inch): 0.0866
Cutting Width (mm): 2.20
Insert Holding Method: Clamp
Lead Angle Direction: Left Hand
Lead Angle: 6    Relief Angle: 2.00
Corner Radius (Decimal Inch): 0.0079
Chipbreaker: CF
Multi-use Tool: No
Series: A2
Coating Process: PVD
Cutting Height (mm): 4.76
Cutting Height (Decimal Inch): 0.1874
Material Grade: C6; C2
Insert Seat Size: 2
Coating/Finish: TiAlN
UNSPSC Code: 23242105
Country of Origin: Germany

MPN: 1790187
PKG QTY: 5 PCS

Location: SUR-STC-036
