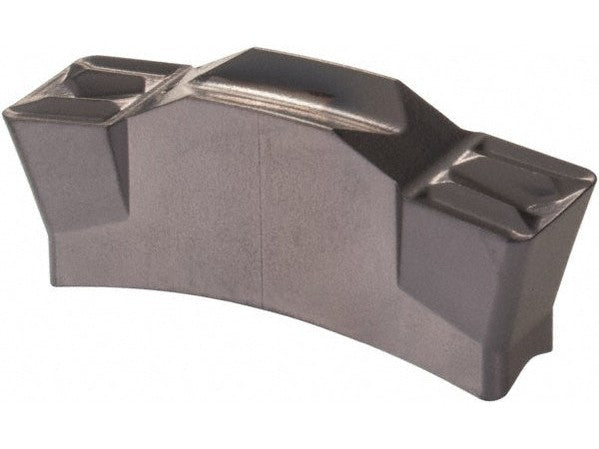

Iscar TGMF 635-080 IC20 Carbide Inserts (9 PCS) Partial Box, 6700016

Iscar
GMF 635-080 IC20 Carbide Inserts (9 PCS) Partial Box, 6700016

Specs
Insert Style: TGMF
Insert Size Code: 635080
Insert Grade: IC20
Cutting Width (Decimal Inch): 0.2500
Cutting Width (mm): 6.35
Insert Hand: Neutral
Maximum Depth of Cut (Decimal Inch): 0.7320
Maximum Depth of Cut (mm): 18.59
Insert Material: Carbide
Manufacturer Grade: IC908
Full Radius: No
Corner Radius (Decimal Inch): 0.0310
Corner Radius (mm): 0.79
Insert Holding Method: Self Grip
Measurement Type: Metric
Insert Size: 635080
Maximum Depth Of Cut Range (Decimal Inch): 0.3000 to 1.0000
Maximum Depth Of Cut Range (mm): 10.00 to 20.00
Multi-use Tool: Yes
Series: Top Grip
Overall Length (Decimal Inch): 0.8720
Country of Origin: Israel

MPN: 6700016
PKG QTY: 9 Inserts (Partial Box)

Location: SUR-BCS-111
