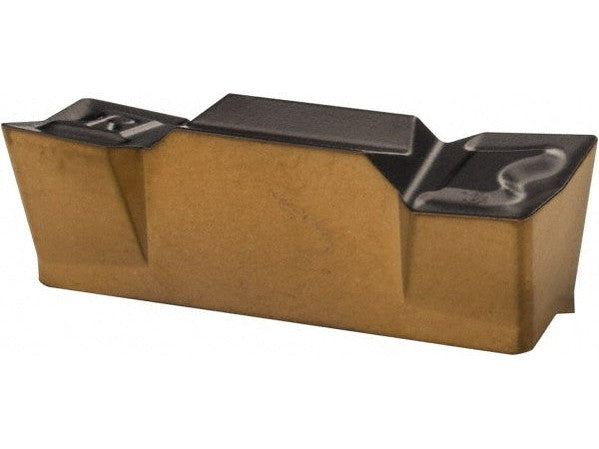

Iscar HFPR-6004 IC656 Carbide Inserts (9 PCS) Partial Box, 6200024

Iscar
HFPR-6004 IC656 Carbide Inserts (9 PCS) Partial Box, 6200024

Specs

Insert Style: HFPR
Insert Size Code: 6004
Cutting Width (Decimal Inch): 0.2362
Cutting Width (mm): 6.00
Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.1180
Maximum Depth of Cut (mm): 3.00
Insert Material: Carbide
Manufacturer Grade: IC656
Full Radius: No
Corner Radius (Decimal Inch): 0.0157
Corner Radius (mm): 0.40
Rake: Positive
Insert Holding Method: Clamp
Measurement Type: Metric
Insert Size: 6004
Maximum Depth Of Cut Range (Decimal Inch): 0.1000 to 0.1500
Maximum Depth Of Cut Range (mm): 3.00 to 4.00
Multi-use Tool: No
Series: Heliface
Rake Angle: 7.000
Overall Length (Decimal Inch): 0.7480
Country of Origin: Israel

MPN: 6200024
PKG QTY: 9 Inserts (Partial Box)

Location: SUR-BCS-111
