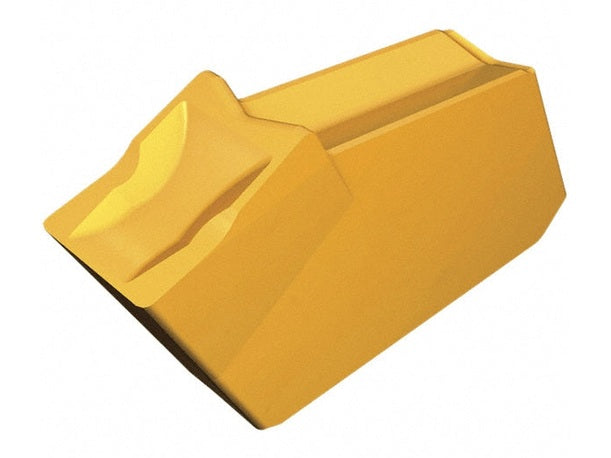

Iscar GSFN-3.2 IC635 Carbide Inserts (10 PCS) 6011355

Iscar
GSFN-3.2 IC635 Carbide Inserts (10 PCS) 6011355

Specs
Insert Style: GSFN
Insert Size: 3.2
Insert Material: Solid Carbide
Insert Shape: Rectangle
Manufacturer Grade: IC635
Corner Radius (Decimal Inch): 0.0087
Corner Radius (mm): 0.22
Number Of Cutting Edges: 1
Relief Angle: 7.000
Insert Size Code: 3.2
Inscribed Circle (Decimal Inch): 0.1260
Inscribed Circle Range (Decimal Inch): 0.0000 to 0.2500
Insert Hand: Neutral
Series: Self Grip
Cutting Edge Effective Length (Decimal Inch): 0.1260
Rake: Positive
Cutting Edge Style: Honed
Insert Holding Method: Self Grip
Single or Double Sided Insert: Single
Included Angle Degree: 90
Width (Decimal Inch - 4 Decimals): 0.1260
Multi-Use Tool: Yes
Country of Origin: Israel

MPN: 6011355
PKG QTY: 10 PCS

Location: SUR-BCS-111
