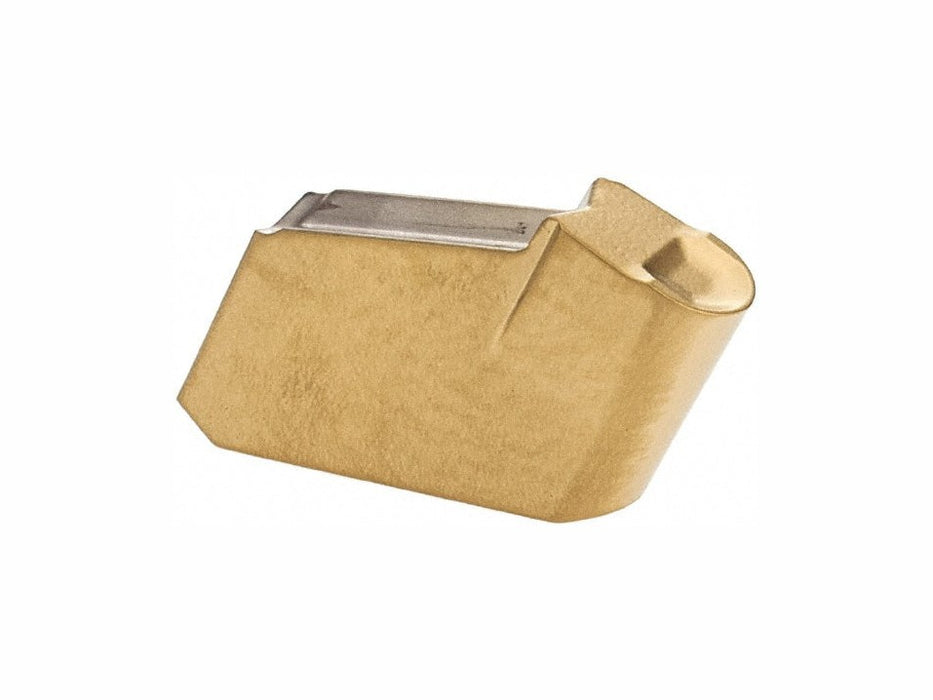

Iscar GSFU-3 IC250 Carbide Milling Inserts (10 PCS) 6001597

Iscar
GSFU-3 IC250 Carbide Milling Inserts (10 PCS) 6001597

Specs
Insert Style: GSFU
Insert Size: 3
Insert Material: Solid Carbide
Insert Shape: Rectangle
Manufacturer Grade: IC250
Corner Radius (Decimal Inch): 0.0079
Corner Radius (mm): 1.50
Number Of Cutting Edges: 1
Relief Angle: 7.000
Insert Size Code: 3
Material Grade: C5; C6
Inscribed Circle (Decimal Inch): 0.1181
Corner Radius (Inch): 1/128
Inscribed Circle Range (Decimal Inch): 0.0000 to 0.2500
Insert Hand: Neutral
Series: Self Grip
Coating Process: PVD
Cutting Edge Effective Length (Decimal Inch): 0.1181
Rake: Positive
Primary Workpiece Material: Stainless Steel; Steel
Primary Workpiece Material Code: P; M
Ansi Code: GSFU-3 IC250
Iso Code: GSFU 3
Cutting Edge Style: Honed
Manufacturers Catalog Number: GSFU-3 IC250
Cutter Series Compatibility: SGSF
UNSPSC Code: 23291601
Material Application: Stainless Steel; Steel
Insert Holding Method: Self Grip
Coating Classification: PVD
Single or Double Sided Insert: Single
Included Angle Degree: 90
Width (Decimal Inch - 4 Decimals): 0.1189
Multi-Use Tool: Yes
Country of Origin: Israel

MPN: 6001597
PKG QTY: 10 PCS

Location: SUR-BCS-111
