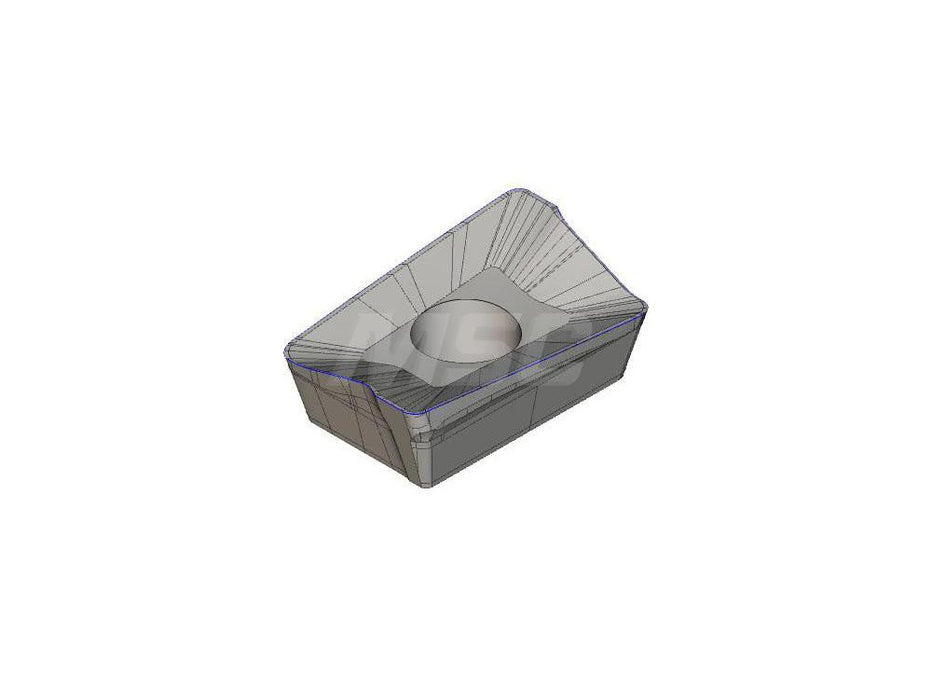

Iscar APCR 1003PDFR-P IC28 Carbide Inserts (5 PCS) Partial Box, 5691263

Iscar
APCR 1003PDFR-P IC28 Carbide Inserts (5 PCS) Partial Box, 5691263

Specs
Insert Style: APCR
Insert Size: 10
Insert Material: Solid Carbide
Insert Shape: Parallelogram
Manufacturer Grade: IC28
Corner Radius (Decimal Inch): 0.0197
Corner Radius (mm): 0.50
Number Of Cutting Edges: 2
Thickness (Decimal Inch - 4 Decimals): 0.1480
Coating/Finish: Bright/Uncoated
Relief Angle: 11.000
Insert Size Code: 1003
Material Grade: C5; C6
Inscribed Circle (Decimal Inch): 0.2640
Thickness Range (Decimal Inch): 0.1250 to 0.1500
Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000
Length Range (Decimal Inch): 0.4000 to 0.4500
Insert Hand: Right Hand
Maximum Depth of Cut (mm): 8.00
Maximum Depth of Cut (Decimal Inch): 0.3860
Series: HELIMILL
Coating Process: Uncoated
Hole Diameter (Decimal Inch): 0.1100
Cutting Edge Effective Length (Decimal Inch): 0.4060
Rake: Positive
Primary Workpiece Material: Non-Ferrous Metal
Primary Workpiece Material Code: N
Ansi Code: APCR 1003PDFR-P IC28
Iso Code: APCR 1003PDFR-P
Standards: ISO 13399; ANSI
Cutting Edge Style: Sharp
Manufacturers Catalog Number: APCR 1003PDFR-P IC28
Cutter Series Compatibility: HM90-10
Chip Breaker: P
UNSPSC Code: 23291601
Material Application: Non-Ferrous Metal
Insert Holding Method: Screw
Coating Classification: Uncoated
Single or Double Sided Insert: Single
Included Angle Degree: 85
Width (Decimal Inch - 4 Decimals): 0.2640
Multi-Use Tool: Yes
Length (Decimal Inch - 4 Decimals): 0.4410
Country of Origin: Israel

MPN: 5691263
PKG QTY: 5 Inserts (Partial Box)

Location: SUR-BCS-111
