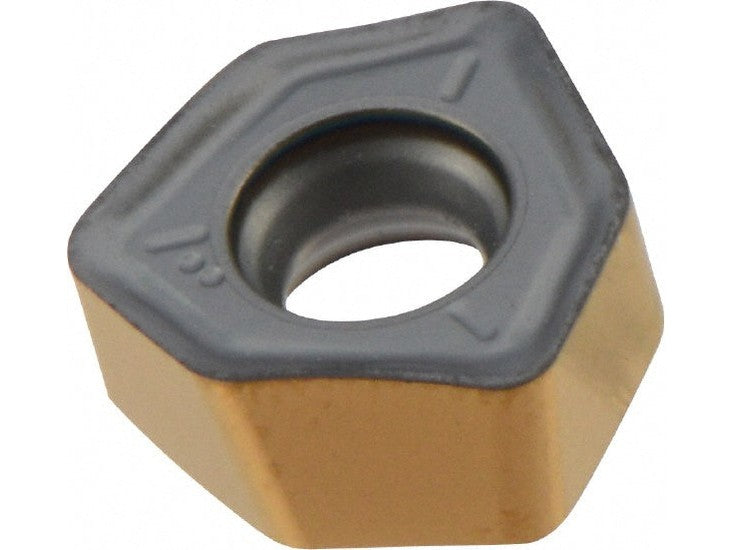

Iscar H600 WXCU 05T312T IC810 Carbide Inserts (10 PCS) 5606348

Iscar
H600 WXCU 05T312T IC810 Carbide Inserts (10 PCS) 5606348

Specs
Insert Style: WXCU
Insert Size: 05
Insert Material: Solid Carbide
Insert Shape: Trigon
Manufacturer Grade: IC810
Corner Radius (Decimal Inch): 0.0472
Corner Radius (mm): 1.20
Number Of Cutting Edges: 6
Thickness (Decimal Inch - 4 Decimals): 0.1650
Coating/Finish: TiN; AlTiCrN
Relief Angle: 0.000
Insert Size Code: 05T312
Width (Inch): 21/64
Length (Inch): 21/64
Inscribed Circle (Decimal Inch): 0.3280
Inscribed Circle (Inch): 21/64
Thickness Range (Decimal Inch): 0.1500 to 0.1750
Corner Radius (Inch): 3/64
Inscribed Circle Range (Decimal Inch): 0.3000 to 0.3500
Length Range (Decimal Inch): 0.3200 to 0.4000
Insert Hand: Right Hand    Maximum Depth of Cut (mm): 1.00
Maximum Depth of Cut (Decimal Inch): 0.2165
Series: HELI6FEED
Coating Process: PVD
Cutting Edge Effective Length (Decimal Inch): 0.2165
Rake: Negative
Primary Workpiece Material: Cast Iron; Steel
Primary Workpiece Material Code: P; K
Ansi Code: H600 WXCU 05T312T IC810
Iso Code: H600 WXCU 05T312T
Standards: ISO 13399; ANSI
Rake Angle: 20.000
Cutting Edge Style: T-Land
Manufacturers Catalog Number: H600 WXCU 05T312T IC810
Cutter Series Compatibility: FWX; EWX
Chip Breaker: T    UNSPSC Code: 23291601
Material Application: Cast Iron; Steel
Insert Holding Method: Screw
Coating Classification: Sumotec PVD
Single or Double Sided Insert: Double
Included Angle Degree: 80
Width (Decimal Inch - 4 Decimals): 0.3280
Multi-Use Tool: Yes
Length (Decimal Inch - 4 Decimals): 0.3280
Country of Origin: Israel

MPN: 5606348
PKG QTY: 10 PCS
