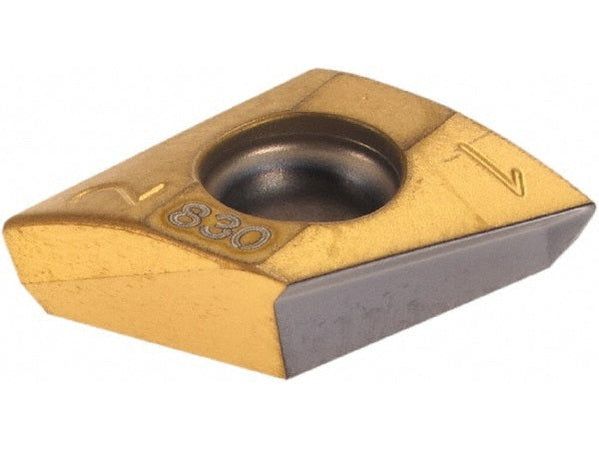

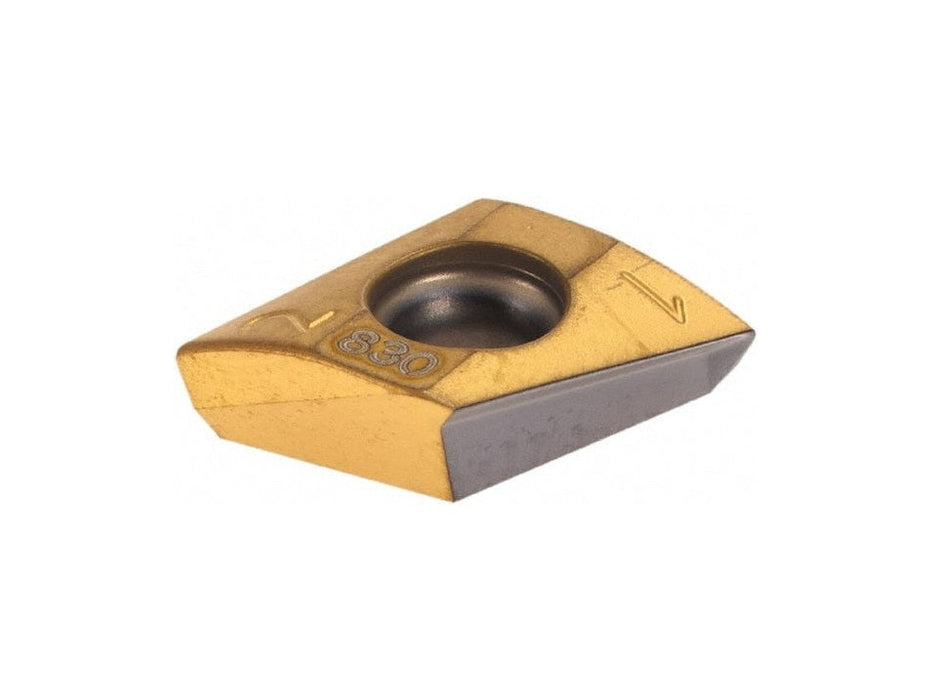

Iscar T290 LNMT 100405TR IC830 Carbide Inserts (10 PCS) 5606038

Iscar
T290 LNMT 100405TR IC830 Carbide Inserts (10 PCS) 5606038

Specs
Insert Style: LNMT
Insert Size: 10
Insert Material: Solid Carbide
Insert Shape: Butterfly
Manufacturer Grade: IC830
Corner Radius (Decimal Inch): 0.0197
Corner Radius (mm): 0.50
Number Of Cutting Edges: 2
Thickness (Decimal Inch - 4 Decimals): 0.3500
Coating/Finish: AlTiN; TiN
Relief Angle: 0.000
Insert Size Code: 100405
Inscribed Circle (Decimal Inch): 0.1610
Thickness Range (Decimal Inch): 0.2500 to 0.3500
Inscribed Circle Range (Decimal Inch): 0.0000 to 0.2500
Length Range (Decimal Inch): 0.4000 to 0.4500
Insert Hand: Right Hand    Maximum Depth of Cut (mm): 10.00
Maximum Depth of Cut (Decimal Inch): 0.3940
Series: SUMOMILL
Coating Process: PVD
Cutting Edge Effective Length (Decimal Inch): 0.4094
Rake: Negative
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; M
Secondary Workpiece Material Code: S
Ansi Code: T290 LNMT 100405TR IC830
Iso Code: T290 LNMT 100405TR
Standards: ISO 13399; ANSI
Cutting Edge Style: T-Land
Manufacturers Catalog Number: T290 LNMT 100405TR IC830
Cutter Series Compatibility: T290
Chip Breaker: TR
UNSPSC Code: 23291601
Material Application: Stainless Steel; Superalloys & Titanium; Steel
Insert Holding Method: Screw
Coating Classification: Sumotec PVD
Single or Double Sided Insert: Double
Included Angle Degree: 90
Width (Decimal Inch - 4 Decimals): 0.1610
Multi-Use Tool: Yes
Length (Decimal Inch - 4 Decimals): 0.4094
Country of Origin: Israel

MPN: 5606038
PKG QTY: 10 PCS

Location: SUR-BCS-111
