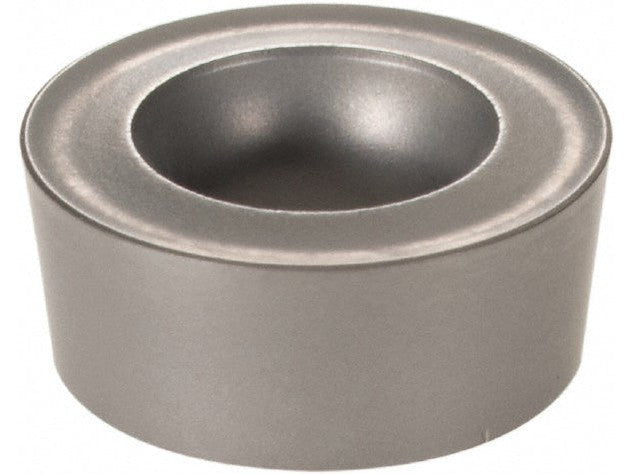

Iscar RCMT 1204MO-14 IC20 Carbide Inserts (9 PCS) Partial Box, 5500620

Iscar
RCMT 1204MO-14 IC20 Carbide Inserts (9 PCS) Partial Box, 5500620

Specs
Insert Style: RCMT
Insert Size: 12
Insert Material: Solid Carbide
Insert Shape: Round
Manufacturer Grade: IC20
Corner Radius (Decimal Inch): 0.2362
Number Of Cutting Edges: 4
Thickness (Decimal Inch - 4 Decimals): 0.1870
Coating/Finish: AlTiN    Relief Angle: 7.000
Insert Size Code: 1204    Material Grade: Submicron
Inscribed Circle (Decimal Inch): 0.4724
Thickness Range (Decimal Inch): 0.1850 to 0.2000
Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000
Length Range (Decimal Inch): 0.4500 to 0.5000
Insert Hand: Neutral
Maximum Depth of Cut (Decimal Inch): 0.2360
Hole Diameter (mm): 0.22
Hole Diameter (Decimal Inch): 0.2165
Cutting Edge Effective Length (Decimal Inch): 0.4720
Rake: Positive
Country of Origin: Israel

MPN: 5500620
PKG QTY: 9 Inserts (Partial Box)

Location: SUR-BCS-111
