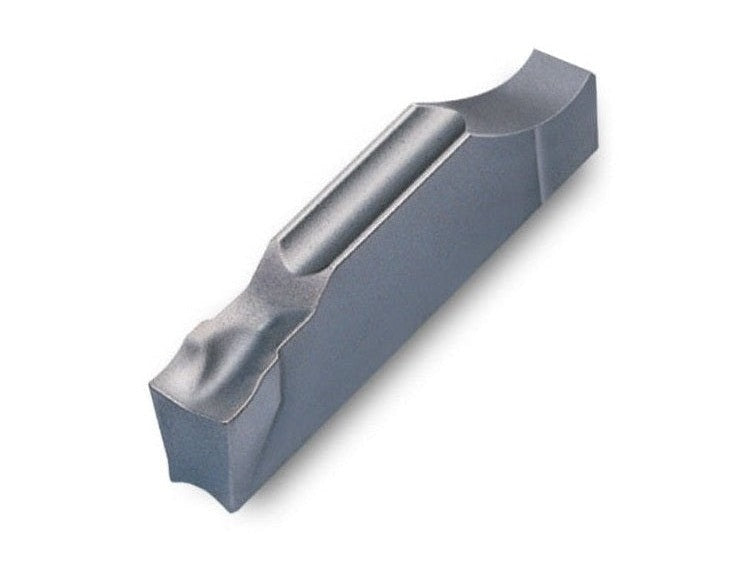

TSJ4 TT9080 Ingersoll Carbide Parting Grooving Inserts (10 PCS) 6001115

Ingersoll Cutting Tools
TSJ4 TT9080 Carbide Inserts 10 PCS

Product Series Features:
- Single End Inserts for Parting and Deep Grooving
- J-type Chipbreakers
- Not for lateral Turning

Specs
Designation: TSJ4 TT9080
Insert Seat Size: 4
Cutting Width: 0.157
Corner Radius: 0.012
Body Width: 0.118
Insert Length: 0.790
Insert Hand: Neutral
Thickness: 0.185
Axial Groove I.D. Min.: 1.339
Min. Bore Dia.: 1.968
Number of Indexes: 1
Clearance Angle Major: 7-Degree
Grooving Feed Min.: .001
Grooving Feed Max.: 0.007

MPN: 6001115
PKG QTY: 10 PCS
