Dorian 55030, S32V-MCLNR-5 Boring Bar for CNM_543 Inserts

Dorian Tool

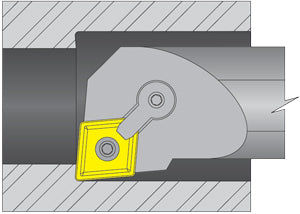

S-MCLNR Boring Bar Style L - Negative 5-Deg. Side and End Cutting Edge Angle for negative 80-Deg. diamond CNM_ inserts

Techinical Specs
Brand: Dorian Tool, Tool Designation: S32V-MCLNR-5, Tooling Type: Boring Bar, Cutting Hand Direction: Right Hand, Bar Diameter: 2.00, Overall Length: 16, Min. Bore: 2.562, Gage Insert: CNM_543, Seat Size: ICSN-533, Lock Pin: NL-58, Clamp: CL-12, Clamp Screw: XNS-510, Optional Seat Screw: S-58

MPN: 55030
PKG QTY: 1 PC
