Dorian 55024, S32V-MCLNR-4 Boring Bar for CNM_432 Inserts

Dorian Tool

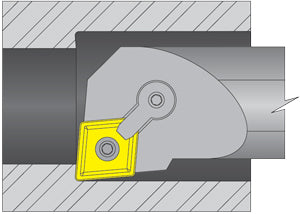

S-MCLNR Boring Bar Style L - Negative 5-Deg. Side and End Cutting Edge Angle for negative 80-Deg. diamond CNM_ inserts

Techinical Specs
Brand: Dorian Tool, Tool Designation: S32V-MCLNR-4, Tooling Type: Boring Bar, Cutting Hand Direction: Right Hand, Bar Diameter: 2.00, Overall Length: 16, Min. Bore: 2.562, Gage Insert: CNM_432, Seat Size: ICSN-433, Lock Pin: NL-46, Clamp: CL-20, Clamp Screw: XNS-48, Optional Seat Screw: S-46

MPN: 55024
PKG QTY: 1 PC
