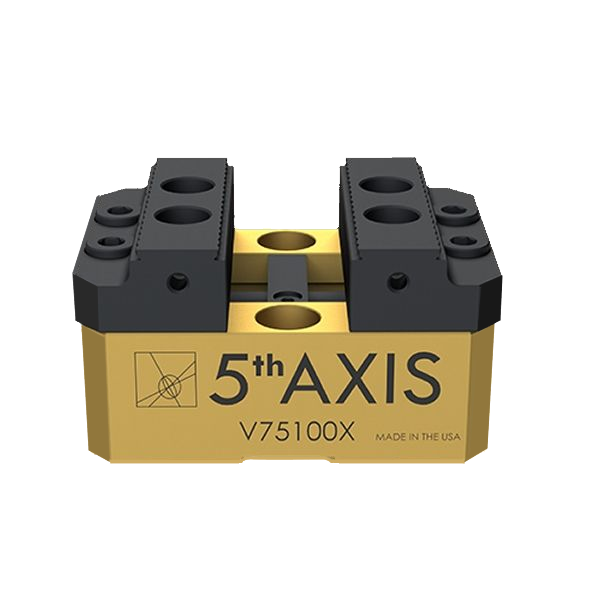

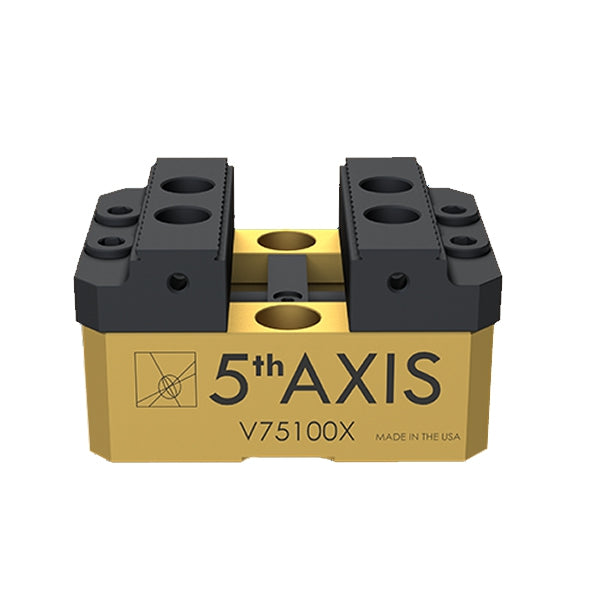

5th Axis V75100X 75mm x 100mm Metric Vise

5th Axis
V75100X 75mm x 100mm Metric Vise

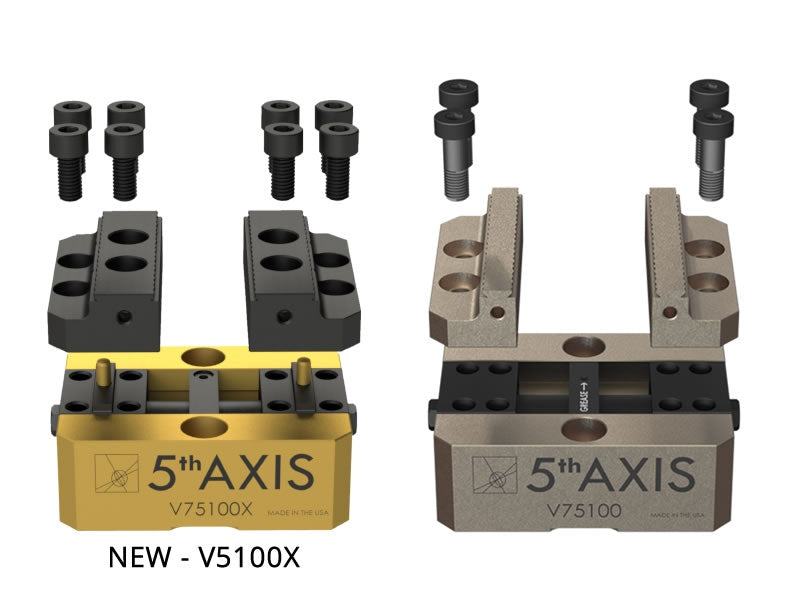

Improved V75100X vs. V75100
New 4 bolt jaw mounting
Reduced jaw lift and robust clamping
Sharper teeth
Better bite
Clamping range

Specs

System Compatibility : 5 Axis Workholding Systems

Product Type : Vise
Jaw Width (mm) : 75.00
Jaw Width (Inch) : 3
Jaw Opening Capacity (mm) : 114
Jaw Opening Capacity (Decimal Inch) : 4.5
Jaw Height (mm) : 100.00
Product Length (Inch) : 4
Product Length (mm) : 100.00
Product Width (Inch) : 3
Product Width (mm) : 75.00
Product Height (mm) : 56
Product Height (Decimal Inch) : 2.2100
Throat Depth (Decimal Inch) : 0.83
Throat Depth (mm) : 21.00
Load Capacity (Lb.) : 3600.00

MPN: V75100X
