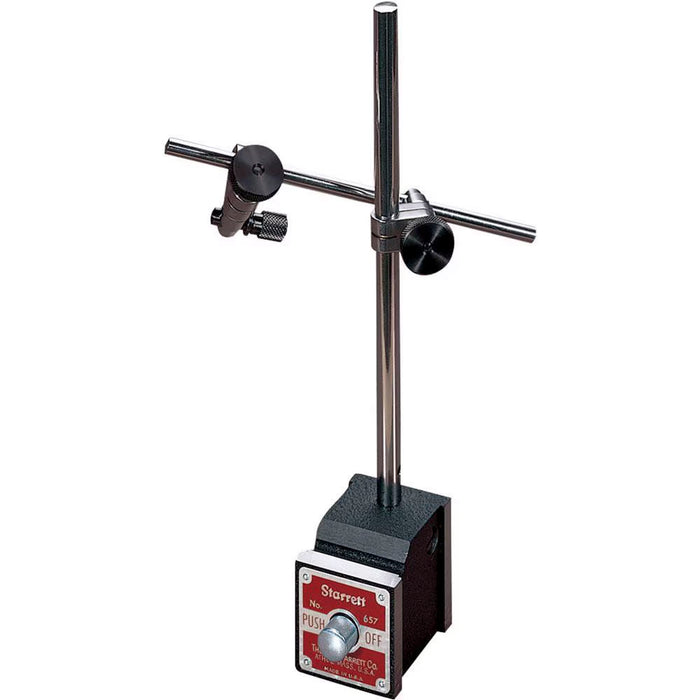

Starrett Mag Base Indicator Positioner and Holder, 657AA

Starrett
Mag Base Indicator Positioner and Holder, 657AA

Specs
Arm Style: Post & Rod
Base Mount Type: Magnetic
Includes Base: Yes
Base Shape: Rectangular
Fine Adjustment: No
Magnetic Pull (Lbs): 150
Post Height (mm): 188.91
Post Height (Inch): 7-7/16
Post Diameter (mm): 9.53
Post Diameter (Inch): 3/8
Arm Length: 6
Arm Length (mm): 152.40
Arm Diameter (mm): 6.35
Arm Diameter: 1/4
Base Height (Inch): 1
Base Length (Inch): 1-5/8
Base Length (Decimal Inch): 1.6252
Base Height (Decimal Inch): 1.9375
Base Height (mm): 49.21
Base Length (mm): 41.28
Base Width (Inch): 1-7/8
Includes: Magnetic Base 657P; Snug 657S with (2) 1/4 in (6.3 mm) Holes; 7-7/16 in Upright Base Post 657G; Indicator Attachment 657Y; Snug PT18724 Complete with 1/4 in & 3/8 in Holes; Rod 657X
Country of Origin: UNITED STATES

EDP / MPN: 52743
Model Number: 657AA
PKG QTY: 1 PC
