Starrett 8 PC Test Indicator Kit, 0.2000" Max, 1.4375" Dial Dia, 0-50-0, S668CZ

Starrett
8 PC Test Indicator Kit, 0.2000" Max, 1.4375" Dial Dia, 0-50-0, S668CZ

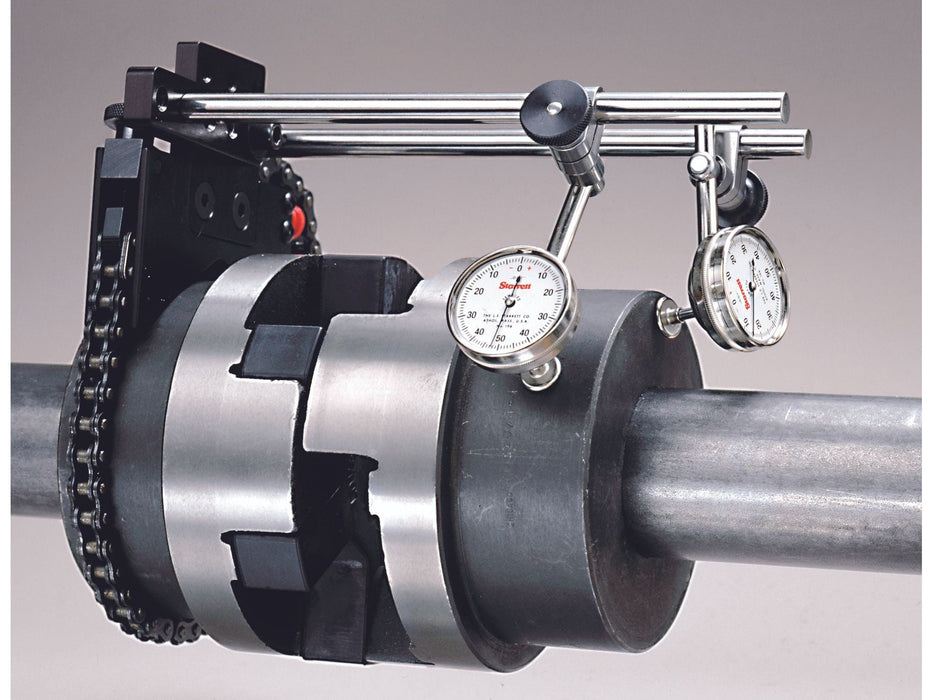

The Starrett Shaft Alignment Clamp is designed for fast, precise alignment of motors, pumps, compressors, etc. This system is capable of addressing radial and angular misalignment problems and can be set up within minutes.

Specs
Minimum Measurement (Decimal Inch): 0.2000
Maximum Measurement (Decimal Inch): 0.2000
Dial Diameter (Inch): 1-7/16
Dial Diameter (Decimal Inch): 1.4375
Dial Graduation (Decimal Inch): 0.001000
Dial Reading: 0-50-0
Dial Color: White
Features: Heavy-Duty Roller Chain; Lightweight Clamp Design; Extension Plate

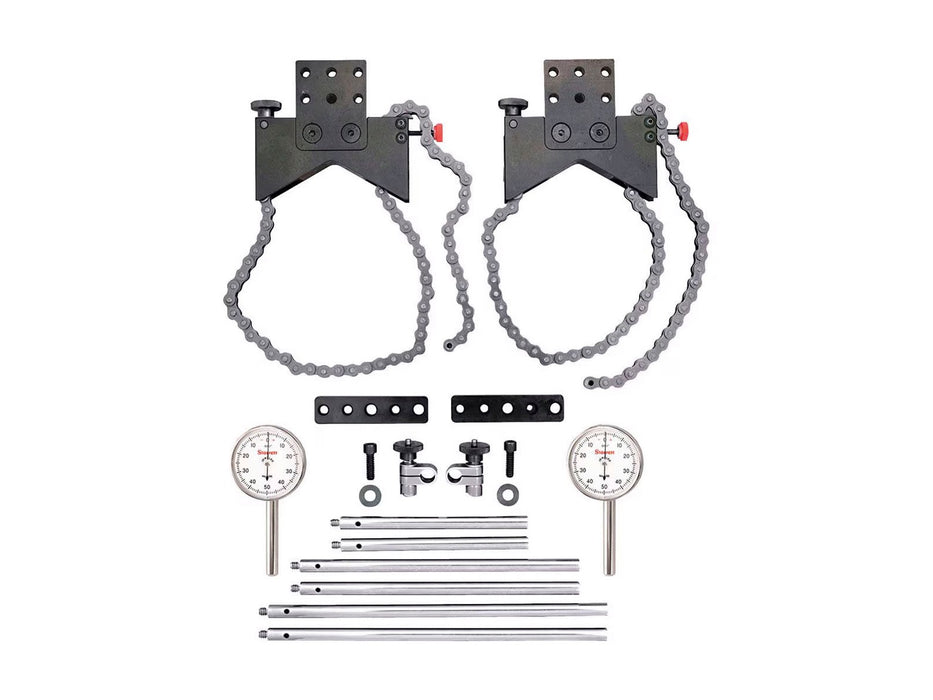

Includes: (2) Posts; (2) Extension Plates; (2) 668 Chain Clamps; (2) Dial Indicators; Case
Standards: California PROP 65
Series: 668
Kit Type: Shaft Alignment Clamp
Number Of Pieces: 8
UNSPSC Code: 41111600
Country of Origin: UNITED STATES

Features
- Lightweight clamp design made of black anodized aluminum
- Rigid 3/8" diameter stainless steel indicator posts provided in three lengths (5", 7-7/16", and 9")
- Extension plate allows for added radial clearance
- Heavy-duty roller chain can accommodate up to a 7-1/2" diameter shaft
- Set comes with two Starrett 196B5 Indicators
- Excess roller chain can be secured to the side of the chain clamp
- A second shaft alignment clamp can be mounted across from the first clamp to act as a vertical target for face alignment

EDP / MPN: 67152
Model Number: S668CZ
PKG QTY: 1 PC (8-PC KIT)
