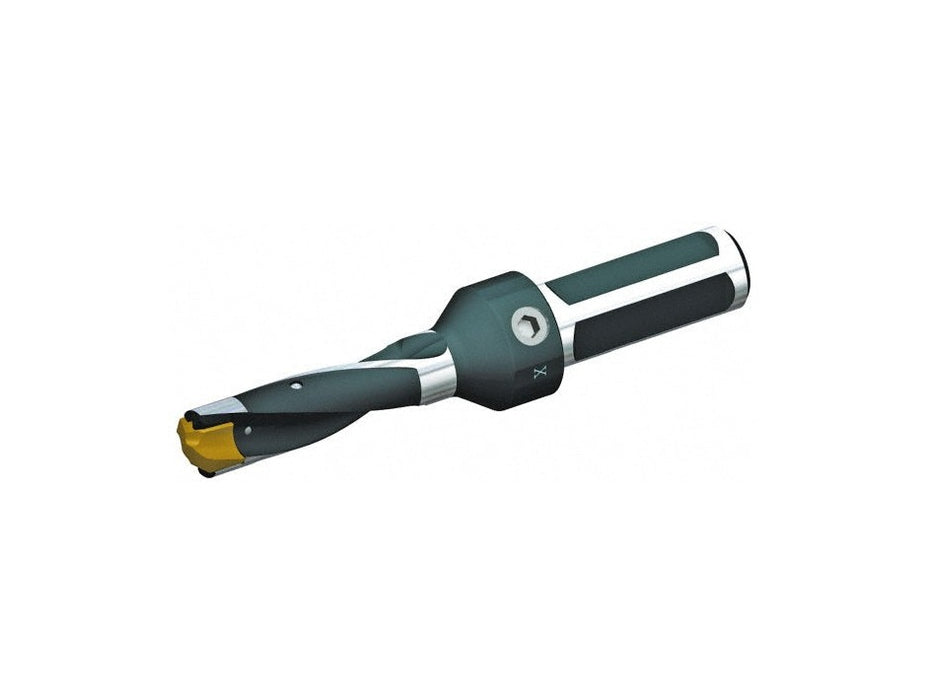

Kennametal KSEM1094R3SSF125 Replaceable-Tip Drill, Coolant Thru, 1613656

Kennametal
KSEM1094R3SSF125 Replaceable-Tip Drill, Coolant Thru, 1613656

Description

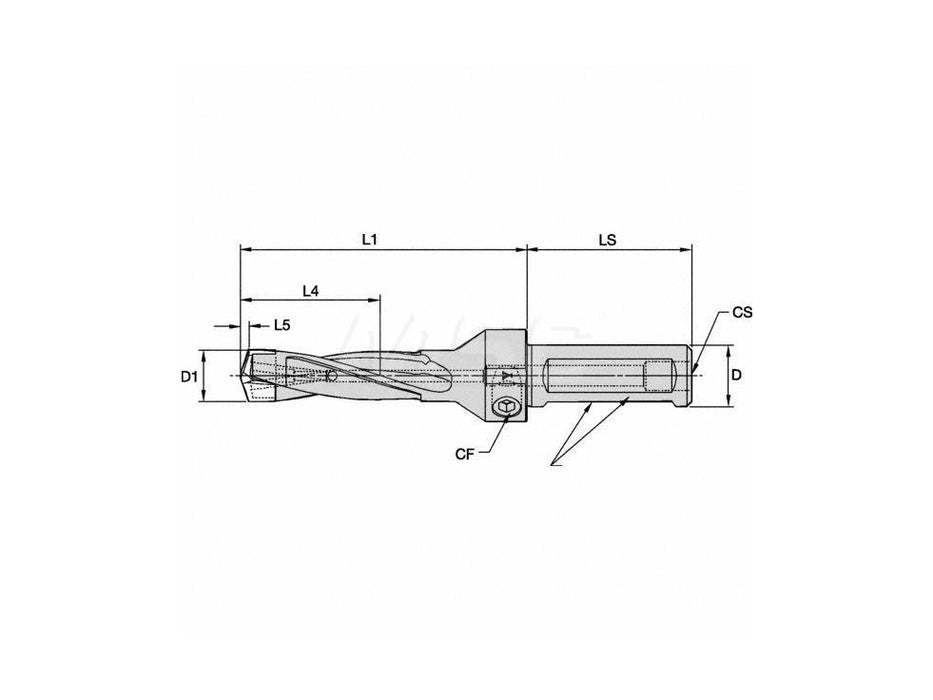

Replaceable-Tip Drill: 27.79 to 28 mm Dia, 84.07 mm Max Depth, 31.75 mm Weldon Flat Shank, Uses KSEM1094 Inserts, Seat Size 6, 222.25 mm OAL, Through Coolant

Note: Indexable Insert Not Include, Sold Seperate

Specs
Minimum Drill Diameter (Decimal Inch): 1.0941
Minimum Drill Diameter (mm): 27.79
Maximum Drill Diameter (mm): 28.00
Maximum Drill Diameter (Decimal Inch): 1.1024
Drill Depth by Diameter Ratio: 3xD
Maximum Drill Depth (mm): 84.07
Maximum Drill Depth (Decimal Inch): 3.3100
Shank Type: Weldon Flat
Insert Seat Size: 6
Shank Diameter (mm): 31.75
Maximum Drill Depth Range (Decimal Inch): 2.5000 to 3.5000
Maximum Drill Depth Range (mm): 80.00 to 100.00
Compatible Insert Style: KSEM1094
Overall Length (mm): 222.25
Overall Length (Decimal Inch): 8.75
Series: KSEM
Flute Length (mm): 117.09
Flute Length (Decimal Inch): 4.6098
Shank Length (Decimal Inch): 3.2500
Coolant Hole Thread Type: NPT
Body Side Coolant Hole Thread Size (Inch): 1/8-27
Shank End Coolant Hole Thread Size (Inch): 1/4-18
Coolant Through: Yes
UNSPSC Code: 23291502
Country of Origin: UNITED STATES

MPN: 1613656
PKG QTY: 1 PC

Location: SUR-STC-319
