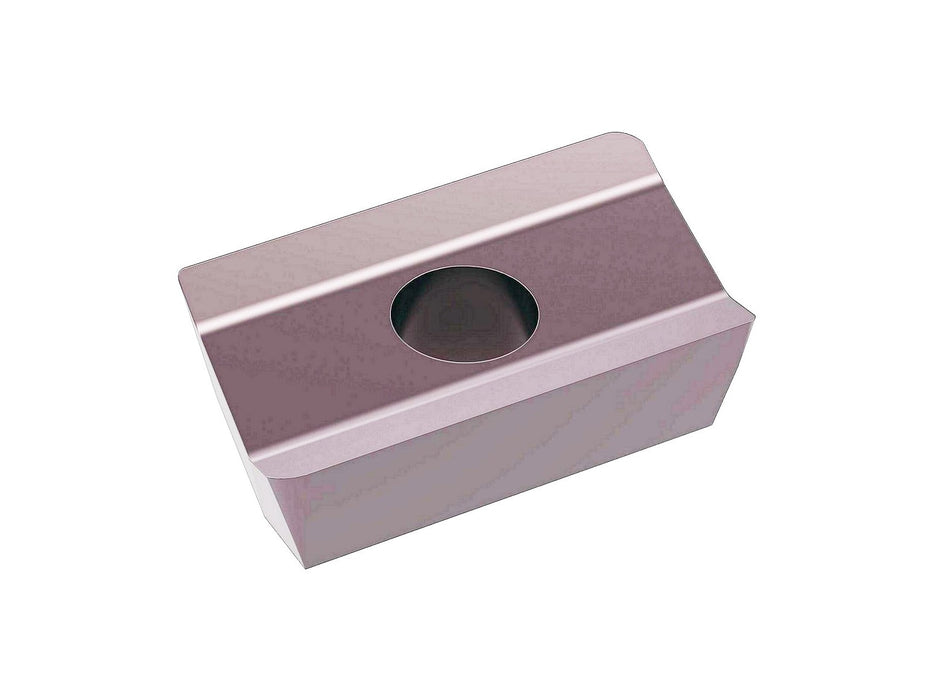

Widia XPHT332AL M680 Carbide Inserts (10 PCS) 2031796

Widia
Carbide Milling Inserts,  ANSI XPHT332AL, ISO XPHT160408AL, THM, Solid Carbide, Bright/Uncoated Finish, 0.1835" Thick, 0.3858" Wide, (10 / PACK)

Specs
Insert Style: XPHT
Insert Size: 16
Insert Material: Solid Carbide
Insert Shape: Parallelogram
Manufacturer Grade: THM
Corner Radius (Decimal Inch): 0.0313
Number Of Cutting Edges: 2
Thickness (Decimal Inch - 4 Decimals): 0.1835
Coating/Finish: Bright/Uncoated
Relief Angle: 11.00
Insert Size Code: 160408
Material Grade: K15
Inscribed Circle (Decimal Inch): 0.3858
Thickness Range (Decimal Inch): 0.1750 to 0.1850
Corner Radius (Inch): 1/32
Length Range (Decimal Inch): 0.6000 to 0.6500
Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.6169
Series: M680
Coating Process: Uncoated
Hole Diameter (Decimal Inch): 0.1748
Rake: Positive
Primary Workpiece Material: Non-Ferrous Metal
Primary Workpiece Material Code: N
Secondary Workpiece Material: Cast Iron; Superalloys & Titanium
Secondary Workpiece Material Code: S; K
Ansi Code: XPHT332AL
Iso Code: XPHT160408AL
Standards: ISO; ANSI
Cutting Edge Style: Honed
Manufacturers Catalog Number: XPHT332AL
Cutter Series Compatibility: M680
Chip Breaker: AL
UNSPSC Code: 23291601
Material Application: Non-Ferrous Metal
Insert Holding Method: Screw
Coating Classification: Uncoated
Single or Double Sided Insert: Single
Included Angle Degree: 80
Width (Decimal Inch - 4 Decimals): 0.3858
Multi-Use Tool: Yes
Length (Decimal Inch - 4 Decimals): 0.6236

MPN: 2031796
PKG QTY: 10 PCS
