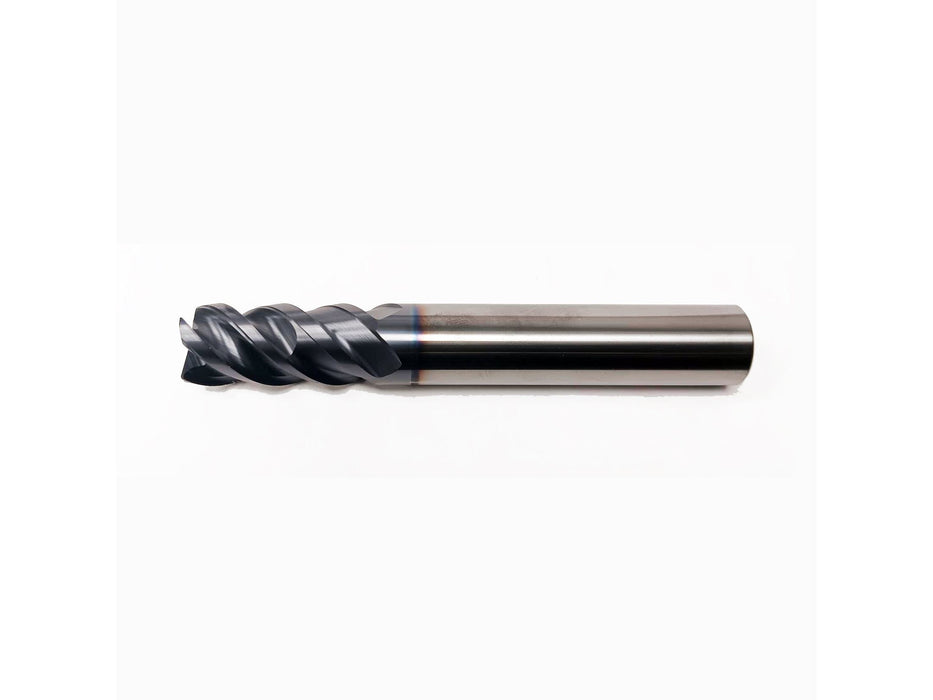

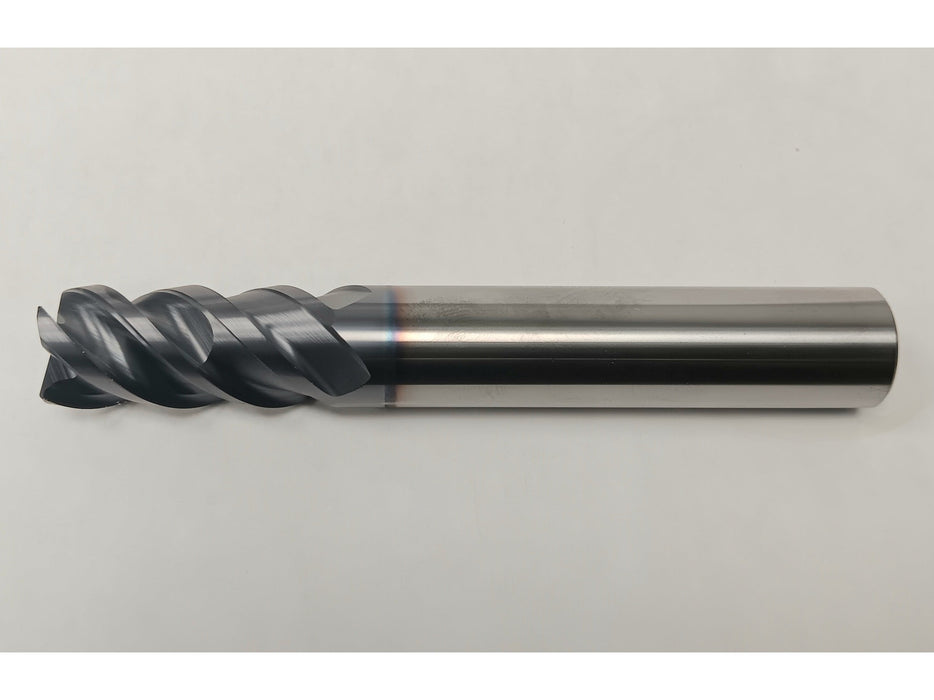

Sandvik 3/4" 4-FL Carbide End Mill, 1-1/2" LOC x 5" OAL, TiAlN Coated, 5739930

Sandvik Coromant
Square End Mill:  3/4" Diameter, 1-1/2" Length of Cut, 4 Flute, Solid Carbide, 5" Overall Length, 3/4" Shank Diameter, 50-Degree Helix, TiAlN Finish, Single End, Series CoroMill Plura solid carbide end mill for Stable Multi-Operations milling, MPN: 5739930

Specs
Mill Diameter (Decimal Inch): 0.7500
Mill Diameter (Inch): 3/4
Number Of Flutes: 4
End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 1.5000
Length of Cut (Inch): 1-1/2
Shank Diameter (Inch): 3/4
Shank Diameter (Decimal Inch): 0.7500
Overall Length (mm): 127.00
Overall Length (Decimal Inch): 5.0000
Overall Length (Inch): 5
Single Or Double End: Single
Coating/Finish Family: TiAlN
Centercutting: Yes
Cutting Direction: Right Hand
Flute Direction: Right Hand
Extended Reach: No
Coolant Through: No
Helix Angle: 50-Degree
Coating/Finish: TiAlN
Variable Helix: No
Chipbreaker: No
Flute Type: Helical
Material Grade: 1630
Length Type: Standard
Reach Length (Decimal Inch): 2.9685
Reach Length (mm): 75.40
Length Of Cut Range (Decimal Inch): 1.5000 - 2.0000
Mill Diameter Tolerance: h9
Series: CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
System Of Measurement: Fractional Inch
UNSPSC Code: 27112803

MPN: 5739930
PKG QTY: 1 PC
