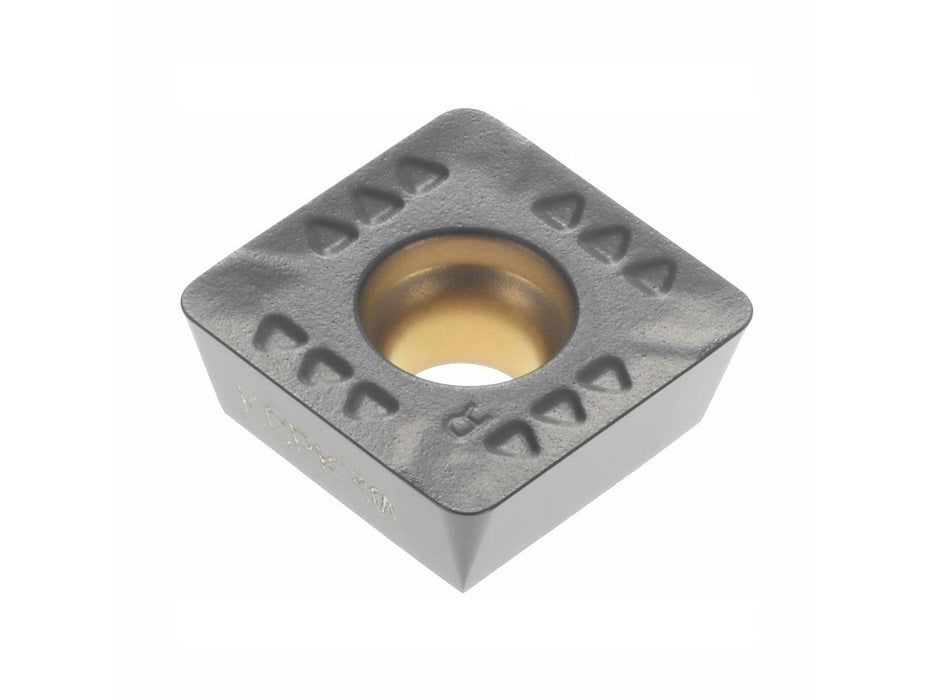

Kennametal SDET 120412PDERGB2 KCPK30 Carbide Inserts (10 PCS) 2390299

Kennametal
SDET 120412PDERGB2 KCPK30 Carbide Milling Inserts (10 PCS) 2390299

Specs
Insert Style: SDET
Insert Size: 43
Insert Material: Solid Carbide
Insert Shape: Square
Manufacturer Grade: KCPK30
Corner Radius (Decimal Inch): 0.0469
Corner Radius (mm): 1.20
Thickness (Decimal Inch - 4 Decimals): 0.1875
Coating/Finish: TiCN; TiN; Al2O3
Relief Angle: 15.00
Insert Size Code: 433
Material Grade: C5; C6; C1
Thickness (Inch): 3/16
Inscribed Circle (Inch): 1/2
Inscribed Circle (Decimal Inch): 0.5000
Thickness Range (Decimal Inch): 0.1850 to 0.2000
Corner Radius (Inch): 3/64
Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100
Insert Hand: Right Hand    Series: SDET
Coating Process: CVD
Hole Diameter (Mm) ( - 0 Decimals): 0.17
Hole Diameter (Decimal Inch): 0.1732
Primary Workpiece Material: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; K; M
Iso Code: SDET120412PDERGB2
Manufacturers Catalog Number: SDET120412PDERGB2
Chip Breaker: GB2
UNSPSC Code: 23291601
Material Application: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
Insert Holding Method: Screw
Coating Classification: CVD
Included Angle Degree: 90
Country of Origin: UNITED STATES

MPN: 2390299
PKG QTY: 10 PCS

Location: SUR-STC-503
