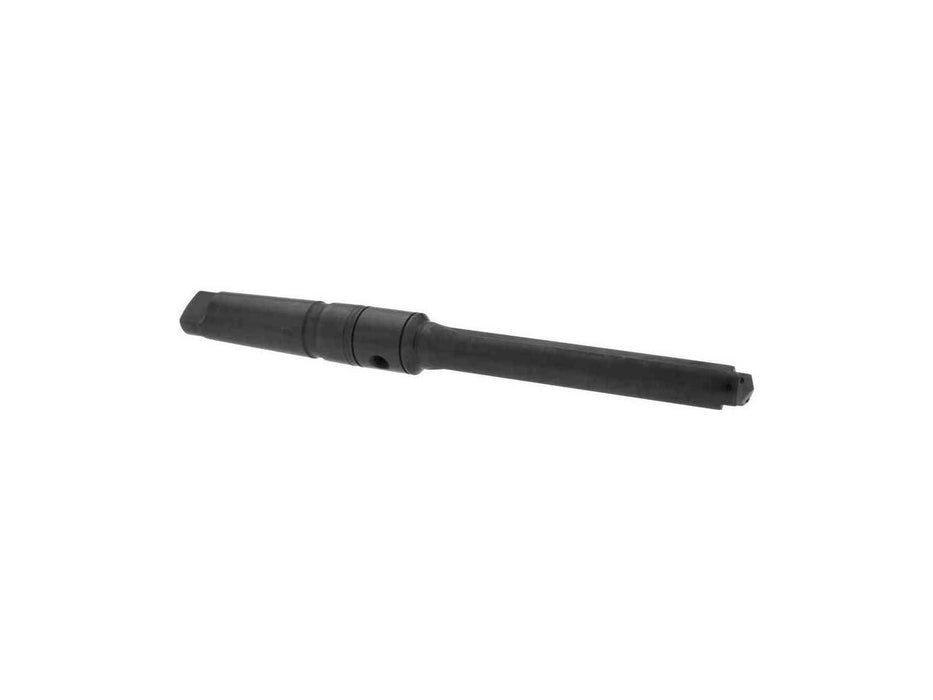

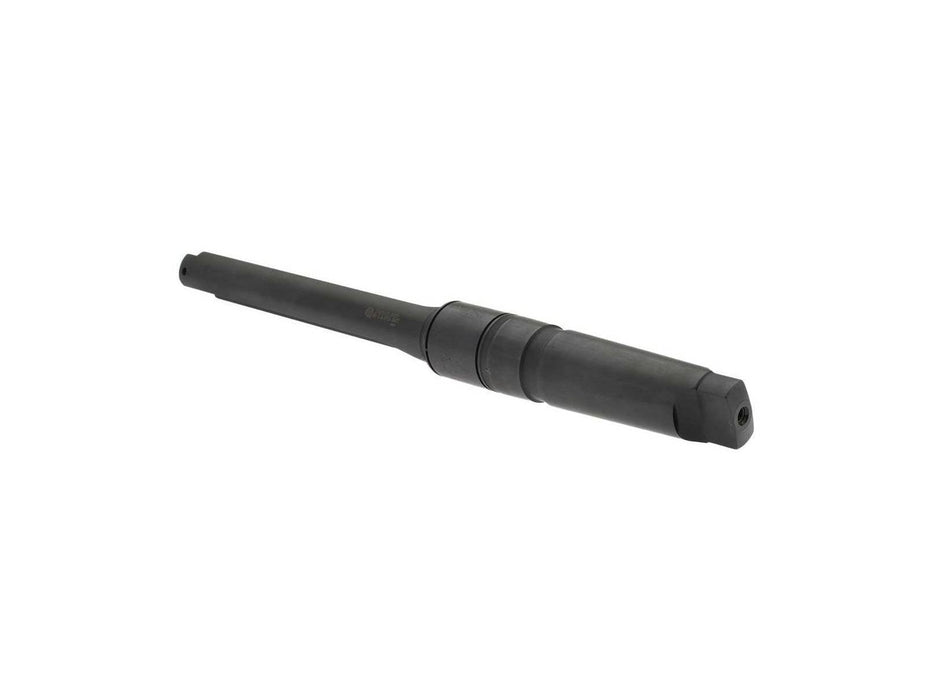

Allied Spade Drill, 13/32 to 1-7/8" Dia, 8-1/4", 5MT Taper Shank, Coolant, 24030S-005I

Allied Machine and Engineering
Spade Drill: 1-13/32 to 1-7/8" Dia, 8-1/4" Max Depth, Straight Flute
5MT Taper Shank, 9-1/2" Body Length, 8-1/4" Flute Length, 17-5/16" OAL, Coolant Through, Series T-A 3

Specs
Minimum Drill Diameter (Inch): 1-13/32
Maximum Drill Diameter (Inch): 1-7/8
Maximum Drill Depth (Inch): 8-1/4
Spade Drill Length: Standard
Shank Type: Taper
Shank Taper Size: 5MT
Shank Diameter (Decimal Inch): 1.7480
Length Type: Standard
Tool Material: Steel
Overall Length (Inch): 17-5/16
Coolant Entry Style Code: 2-Radial Entry
Series: T-A 3
Flute Type: Straight
Flute Length (Inch): 8-1/4
Body Length (Inch): 9-1/2
Shank Length (Inch): 6-1/8
Tool Performance: General Purpose
Coolant Hole Thread Size: 1/4
Coolant Hole Thread Type: NPT
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N
Rotary Coolant Adapter Compatibility: 2T-5SR
Coolant Through: Yes
UNSPSC Code: 23241600
Country of Origin: UNITED STATES

MPN: 24030S-005I
PKG QTY: 1 PC
