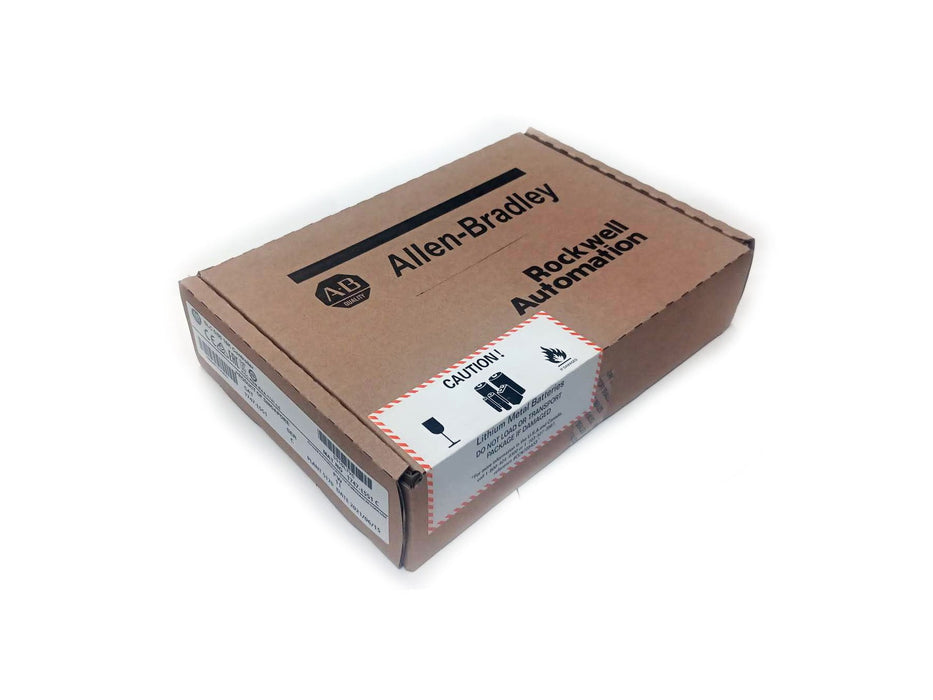

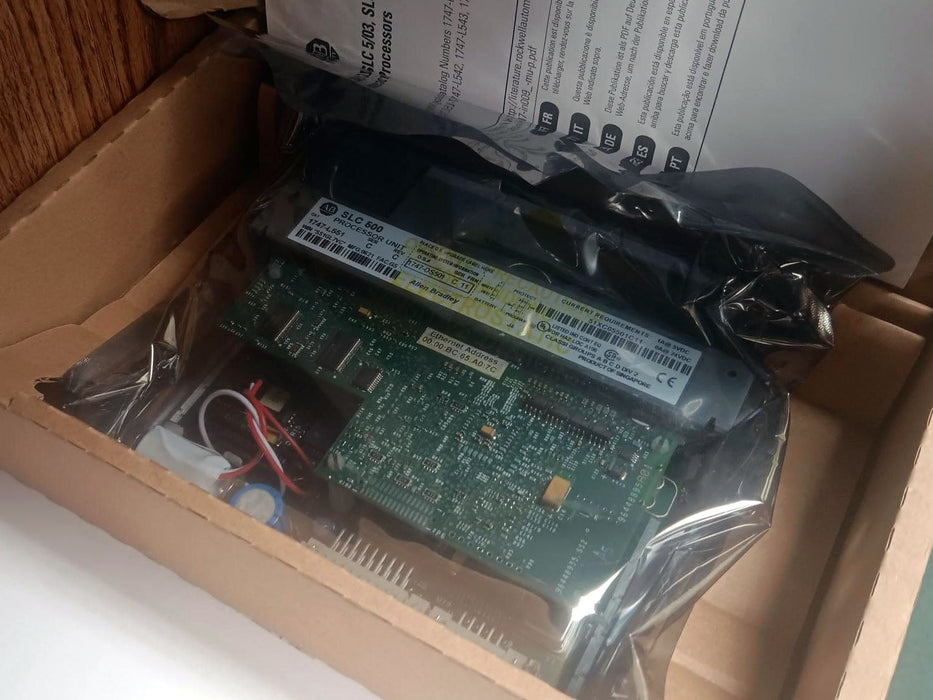

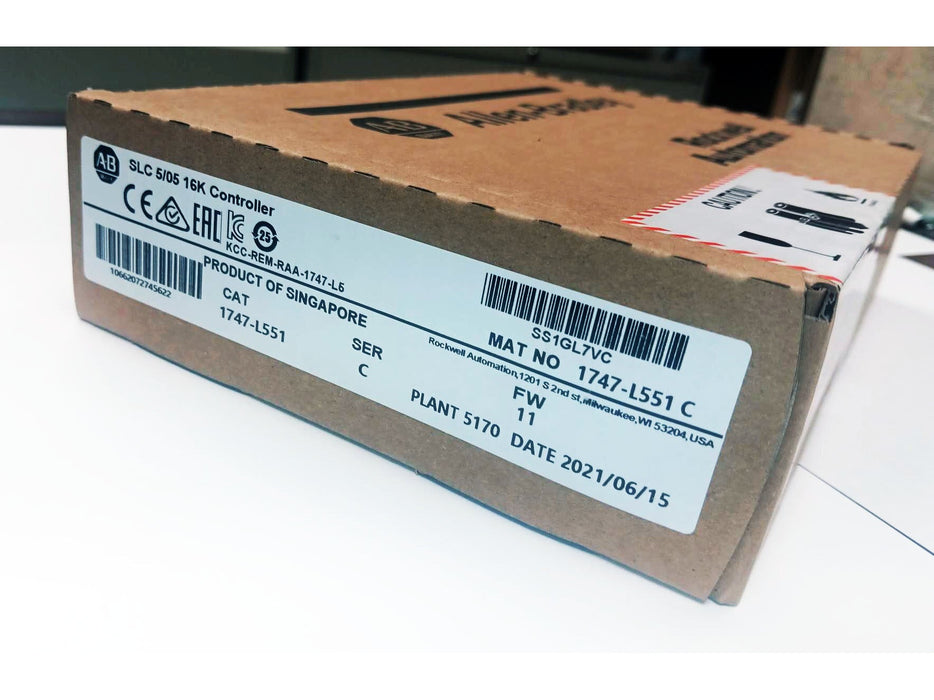

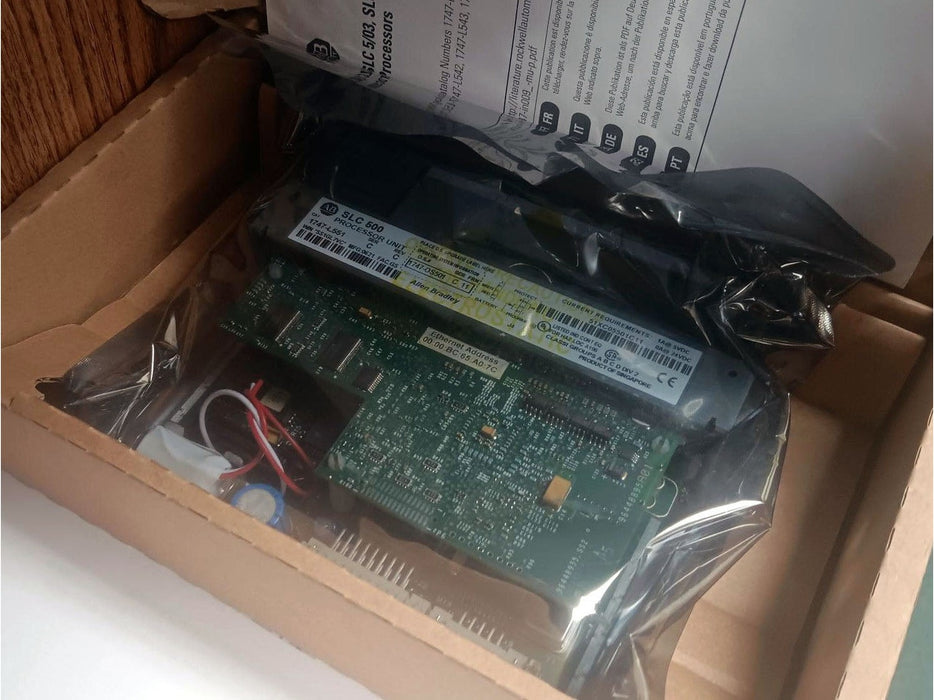

Refurbished Allen-Bradley SLC 5/05 16K Controller, 1747-L551, Series C
Description
Refurbished
Overview
The Allen-Bradley SLC 5/05 16K Controller (1747-L551, Series C) is a dependable and versatile programmable logic controller ideal for industrial automation applications. Featuring 16K memory, this controller supports complex control programs while maintaining reliable performance. New in box, it ensures authentic quality and long-term durability, making it an excellent choice for integrating advanced control solutions into your system.
Performance and Memory
User Memory: 16K words total, with 12K words for data and program, and 4K words for data only.
Program Scan Time: A typical scan time of 0.9 ms per Kword of program.
I/O Scan Time: A typical I/O scan time of 0.225 ms.
Backup Memory: The controller uses Flash memory for backup, which can be supplemented with an optional 1747-M13 64K Flash EPROM Memory Module. It also has standard battery-backed RAM.
I/O Capacity: It can handle an absolute maximum of 4096 inputs and 4096 outputs. It also supports a maximum of 480 local analog I/O.
Chassis and Slots: The processor can be used with a maximum of 3 local I/O chassis, with up to 30 I/O module slots in each chassis.
Communication and Interfaces
Ethernet Port: The Series C model has a built-in 10/100 Base-T Ethernet channel with auto-negotiation, providing speeds up to 100 Mbps. It supports 32 Ethernet connections and provides HTTP server capabilities. It also supports both CSP and EIP protocols concurrently.
RS-232 Port: It has a built-in RS-232 port that can be configured for a DH-485 network. This port supports various protocols, including DF1 Full-Duplex, DF1 Half-Duplex Master/Slave, and ASCII.
Physical and Electrical Specs
Operating Voltage: It draws a maximum current of 1 Amp at 5V DC and 0 Amps at 24V DC from the backplane.
Operating Conditions:
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Relative Humidity: 5-95% non-condensing.
Operating Shock: 30G (3 pulses, 11 ms)
Operating Vibration: 2.5G at 5 to 2000 Hz.
Refurbished not Brand New
PKG QTY: 1 PC
