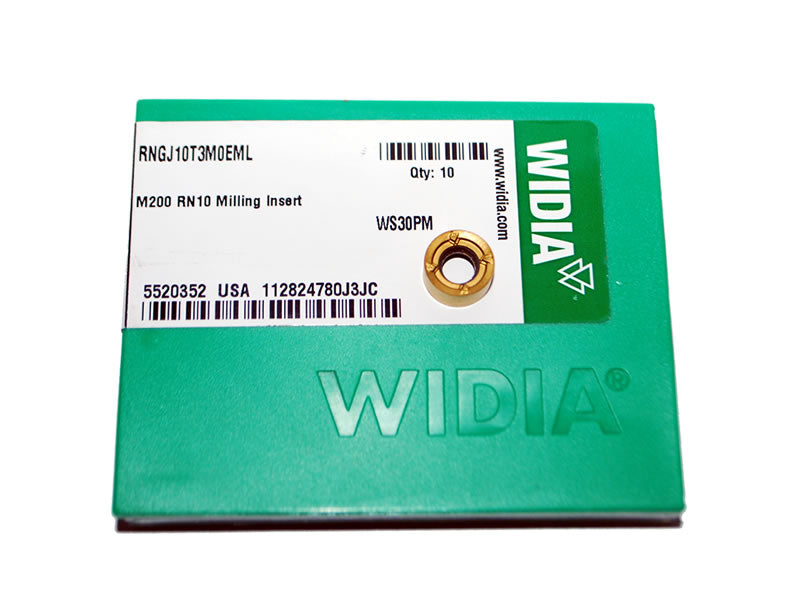

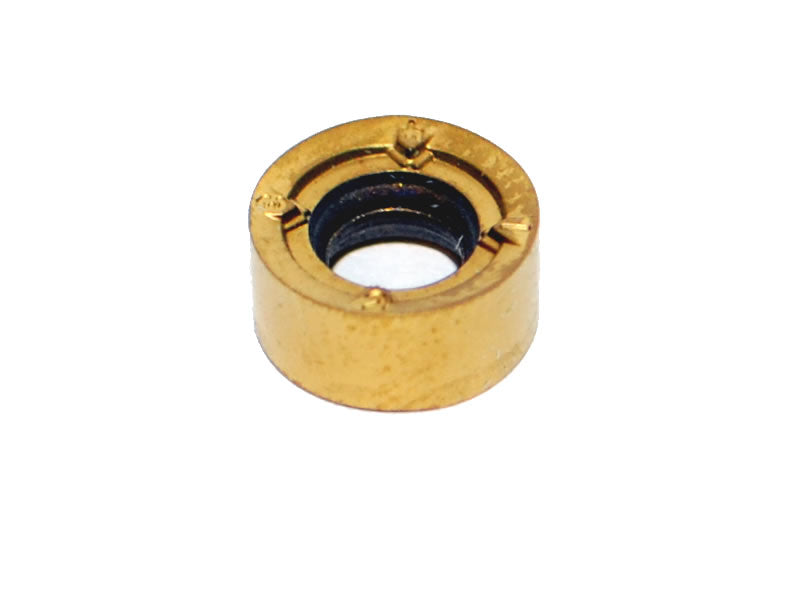

Widia RNGJ10T3 M0EML Grade WS30PM Carbide Milling Inserts (10 PCS)

Widia
RNGJ 10T3 M0EML Grade WS30PM Carbide Milling Inserts (10 PACK)
For use with M200 Copy Mill

Features and benefits
-ML geometry is the first choice for stainless steel and high-temp alloys.

Technical Specs
Item: Milling Insert
Insert Shape: Round
Insert Style: RNGJ
Insert Size: 10T3
Chip-Breaker: Yes
Grade: WS30PM
Insert Application: Finishing
Workpiece Compatibility: Stainless (M), Steel (P), Super Alloy (S)
Inscribed Circle: 0.3937"
Insert Thickness: 0.1548"
Nose Radius: 0.197"
ANSI Number: RNGJ10T3M0EML
ISO Number: RNGJ10T3M0EML
Insert Material: Carbide
Coating: TiN
Cutting Direction: Neutral
Rake: Positive
For Use With: M200 Copy Mill
No. of Edges: 8
Mounting Hole Diameter: 0.183"
Mounting Style: Screw Clamp

MPN: 5520352
PKG QTY: 10 pcs
