Dorian 71942, TCMT-21.51-PEM-DPC25UT Carbide Inserts (10 PCS)
Description
Dorian Tool

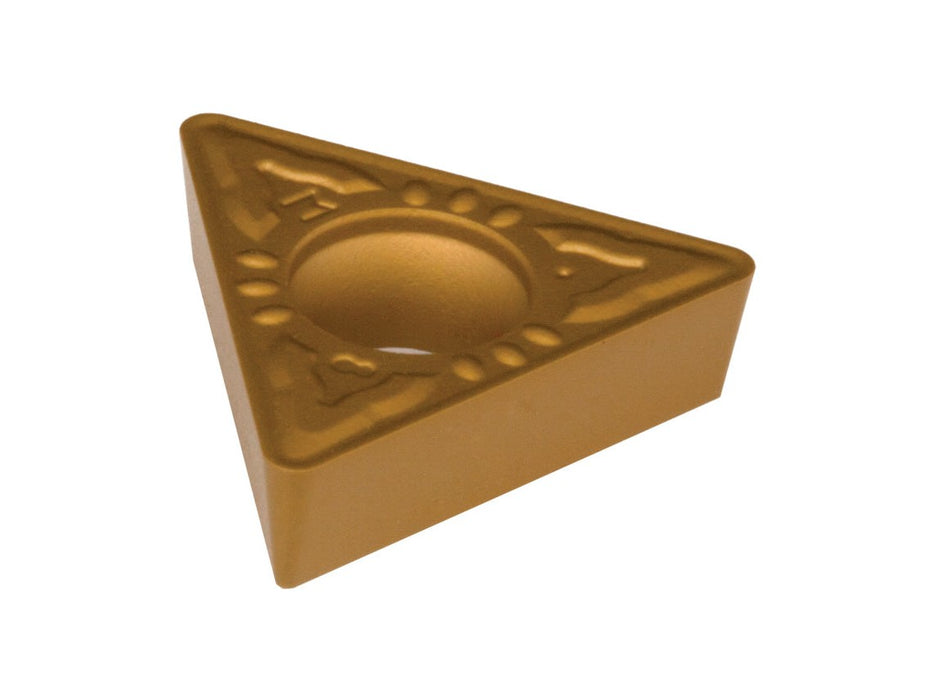

TCMT-21.51-PEM-DPC25UT Carbide Inserts
Technical Specs
Style: TCMT
Chipbreaker: PEM
Workpiece Material: Carbon & Alloy Steel, Stainless Steel
Corner Radius: .015 inches
Cutting Angle: 60 degree
Cutting Direction: Neutral
Cut Type: Medium
Diameter: 1/4 inches
Shape: 60-Degree Triangle
Thickness: 3/32 inches
Rake Type: Positive Rake Angle
Material: Carbide
Grade: DPC25UT
Finish / Coating: CVD Multi Layer Coating
Features
First Choice: For Medium Application of Carbon & Alloy Steel, Stainless Steel, with Medium Depth of Cut and Medium Feed per Revolution at Medium SFM (Vc), Light interrupted Cut, Wet Working Condition. PEM, Medium molded Chip Breaker, Positive Rake Angle and Honed Cutting Edge, for chip control and free evacuation in medium depth of cut. For Universal Turning Application, to machine Carbon & Alloy Steel, Stainless Steel, at Medium Depth of Cut (ap) and Feed Rate per Revolution (fn).
Grade Description
The DPC25UT grade, has a hard, tough, wear and abrasive Resistant Substrate with a CVD Multi Layer of Alumina, Titanium Carbonitride Coating, (Al2O3/TiCN/Al2O3/TiCN). Medium Cutting Speed, for Universal Turning Application, from Finishing to Roughing. To cut Carbon Steel, Alloy Steel and Stainless Steel at Medium SFM (Vc) for Light interrupted Cut
MPN: 71942
PKG QTY: 10 PCS
