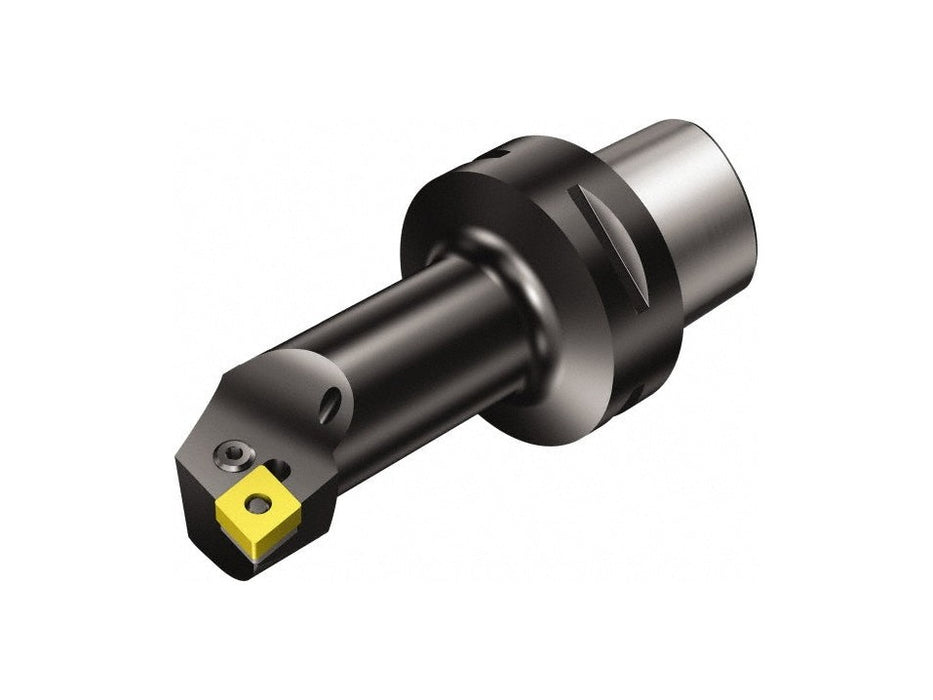

Sandvik Coromant C4-PCLNR-13080-09 Modular Turning & Profiling Head, 6188357

Sandvik Coromant
Modular Turning & Profiling Head: Size C4, 80 mm Head Length, Right Hand, 13 mm Center to Cutting Edge, Uses CNMG 322 Inserts, Through Coolant, 6188357

Specs
Designation: C4-PCLNR-13080-09
System Size: C4
Cutting Direction: Right Hand
Compatible Insert Style: CNMG 322
Insert Holding Method: Lever
Center to Cutting Edge (mm): 13.00
Center to Cutting Edge (Decimal Inch): 0.5118
Series: T-Max P
Center to Cutting Height (mm): 52.00
Center to Cutting Height (Decimal Inch): 2.0472
Complete Insert Compatibility: CNMG 090308
Coolant Through: Yes
Head Length Projection (Decimal Inch): 3.1496
Head Length Projection (mm): 80.00
Minimum Hole Diameter (Decimal Inch): 0.9843
Minimum Hole Diameter (mm): 25.00
UNSPSC Code: 23242100
Country of Origin: Sweden

MPN: 6188357
PKG QTY: 1 PC

Location: SUR-NCT-111
