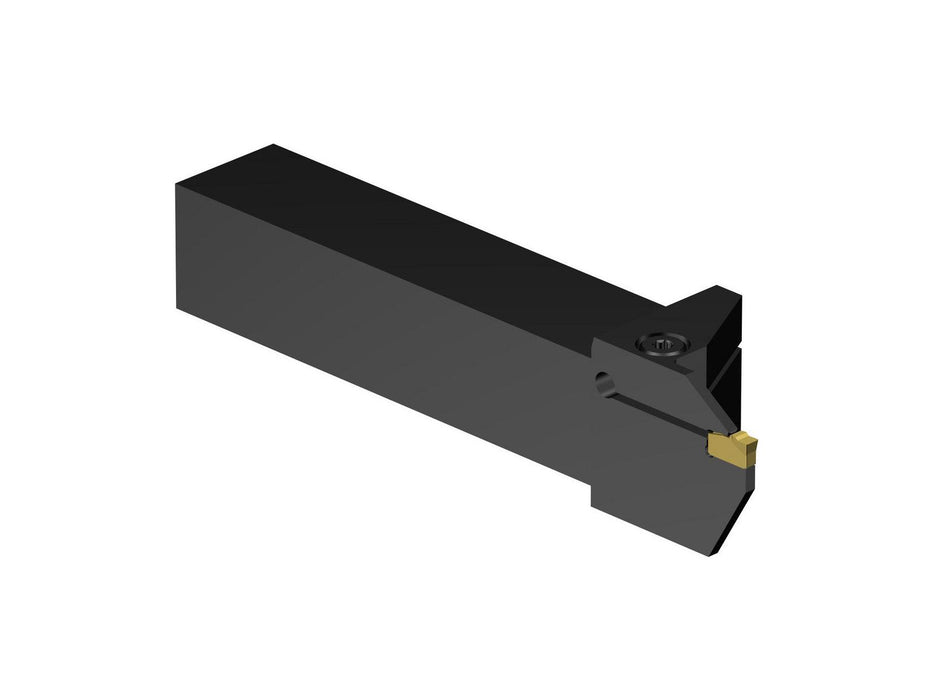

Sandvik Coromant LF151.23-16-30 Indexable Grooving-Cutoff Toolholder, 5733613

Sandvik Coromant
LF151.23-16-30 Indexable Grooving-Cutoff Toolholder, 5733613, 3 to 4.15 mm Groove Width, 20.07 mm Max Depth of Cut, Left Hand, Uses N151.2-300-5E Inserts, 1 x 1" Shank, Series T-Max Q-Cut

Note: Carbide Insert(s) not included. Stock photo used in listing

Specs
Internal or External: External
Hand of Holder: Left Hand
Maximum Depth of Cut (Decimal Inch): 0.7900
Maximum Depth of Cut (mm): 20.07
Maximum Groove Width (mm): 4.15
Minimum Groove Width (Decimal Inch): 0.1181
Minimum Groove Width (mm): 3.00
Toolholder Style: LF151.23
Insert Holding Method: Clamp
Insert Compatibility: N151.2-300-5E (sold seperately)
Shank Height (mm): 25.40
Shank Height (Inch): 1
Shank Height (Decimal Inch): 1.0000
Shank Length (mm): 111.40
Shank Length (Decimal Inch): 4.3860
Shank Width/Diameter (Decimal Inch): 1.0000
Shank Width/Diameter (mm): 25.40
Shank Width/Diameter (Inch): 1
Series: T-Max Q-Cut
Overall Length (mm): 152.40
Back of Bar to Cutting Edge (Decimal Inch): 6.0000
Head Height (Decimal Inch): 1.0000
Head Height (mm): 25.40
Head Length (Decimal Inch): 1.0000
Head Length (mm): 25.40
Manufacturers Catalog Number: LF151.23-16-30
Insert Seat Size: 30.0
Coolant Through: No
UNSPSC Code: 23153308
Country of Origin: Sweden

MPN: 5733613
PKG QTY: 1 PC

Location: SUR-NCT-111
