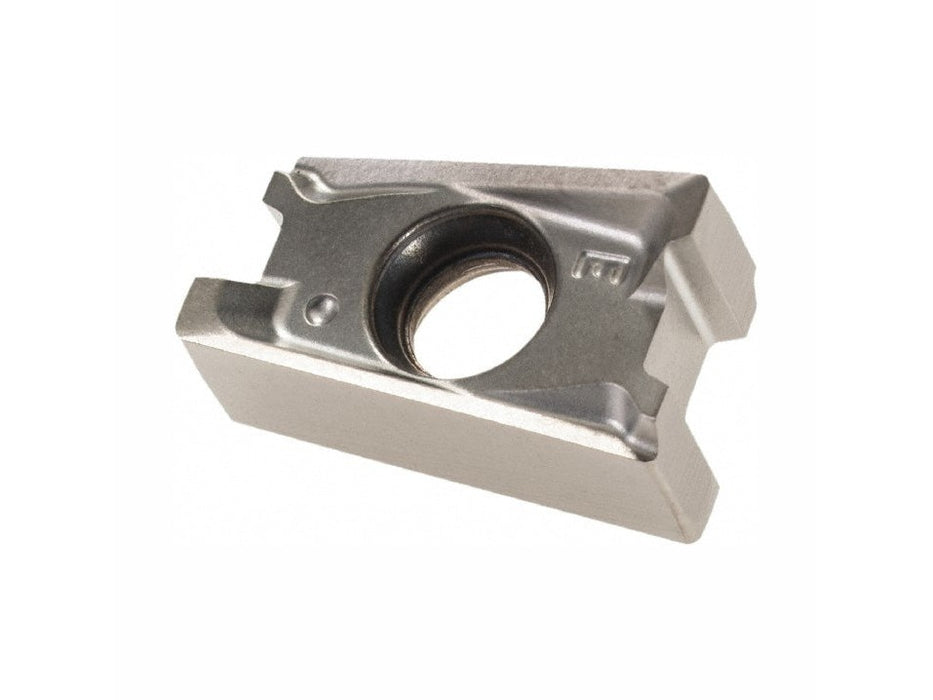

Kennametal LNGU542ERGEJ KC422M Carbide Milling Inserts (10 PCS) 6001232

Kennametal
LNGU542ERGEJ KC422M Solid Carbide Milling Inserts (10 PCS) 6001232

Specifications
Insert Style: LNGU
Insert Size: 5
Insert Material: Solid Carbide
Insert Shape: Rectangle
Manufacturer Grade: KC422M
Corner Radius (Decimal Inch): 0.0310
Corner Radius (mm): 0.80
Number Of Cutting Edges: 4
Thickness (Decimal Inch - 4 Decimals): 0.2740
Thickness (mm): 6.96
Coating/Finish: Titanium Diboride
Relief Angle: 0.000
Insert Size Code: 542
Inscribed Circle (Decimal Inch): 0.3940
Inscribed Circle (mm): 4.65
Thickness Range (Decimal Inch): 0.2500 to 0.3500
Corner Radius (Inch): 1/32
Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000
Length Range (Decimal Inch): 0.6500 to 0.7000
Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.5512
Series: LNGU
Coating Process: PVD
Hole Diameter (mm): 0.18
Hole Diameter (Decimal Inch): 0.1831
Rake: Positive
Primary Workpiece Material: Non-Ferrous Metal
Ansi Code: LNGU542ERGEJ
Iso Code: LNGU15T608ERGEJ
Standards: ISO; ANSI
Cutting Edge Style: Honed
Manufacturers Catalog Number: LNGU15T608ERGEJ
Cutter Series Compatibility: Mill 4-15
Chip Breaker: GE
UNSPSC Code: 23291601
Material Application: Non-Ferrous Metal
Insert Holding Method: Screw
Coating Classification: PVD
Single or Double Sided Insert: Single
Included Angle Degree: 90
Length (mm): 17.00
Width (Decimal Inch - 4 Decimals): 0.3940
Width (mm - 2 Decimals): 10.00
Multi-Use Tool: Yes
Length (Decimal Inch - 4 Decimals): 0.6700
Country of Origin: Germany

MPN: 6001232
PKG QTY: 10 PCS
