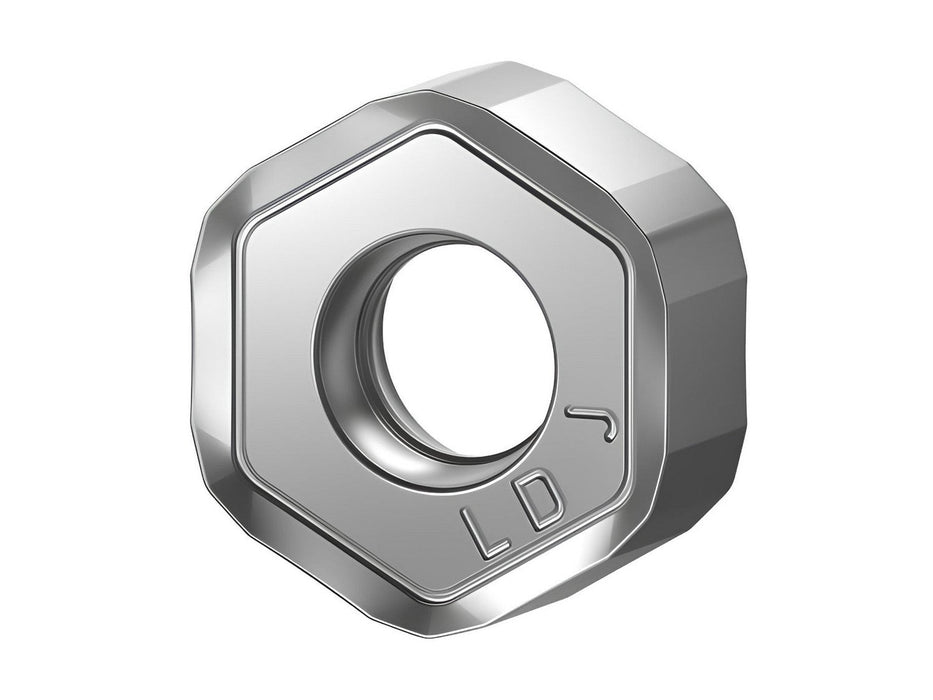

Kennametal HNGJ 43ANFNLDJ K313 Carbide Inserts (10 PCS) 4121574

Kennametal
HNGJ 43ANFNLDJ K313 Carbide Inserts (10 PCS) 4121574

Specs
Insert Style: HNGJ
Insert Size: 4
Insert Material: Carbide
Insert Shape: Hexagon
Manufacturer Grade: K313
Corner Radius (Decimal Inch): 0.0394
Corner Radius (mm): 1.00
Number Of Cutting Edges: 12
Thickness (Decimal Inch - 4 Decimals): 0.1764
Coating/Finish: Bright/Uncoated
Relief Angle: 0.00
Insert Size Code: 43
Inscribed Circle (Decimal Inch): 0.4724
Inscribed Circle (mm): 12.00
Thickness Range (Decimal Inch): 0.1750 to 0.1850
Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000
Length Range (Decimal Inch): 0.4500 to 0.5000
Insert Hand: Neutral
Series: Dodeka Series
Coating Process: Uncoated
Hole Diameter (Mm) ( - 0 Decimals): 0.20
Hole Diameter (Decimal Inch): 0.1969
Rake: Positive
Primary Workpiece Material: Non-Ferrous Metal; Cast Iron
Primary Workpiece Material Code: K; N
Ansi Code: HNGJ43ANFNLDJ
Iso Code: HNGJ0604ANFNLDJ
Standards: ISO; ANSI
Rake Angle: 15
Cutting Edge Style: Sharp
Manufacturers Catalog Number: HNGJ0604ANFNLDJ
Cutter Series Compatibility: Dodeka
Chip Breaker: LDJ
UNSPSC Code: 23291601
Material Application: Non-Ferrous Metal; Cast Iron
Insert Holding Method: Screw
Coating Classification: Uncoated
Single or Double Sided Insert: Double
Included Angle Degree: 120
Width (Decimal Inch - 4 Decimals): 0.4724
Multi-Use Tool: Yes
Length (Decimal Inch - 4 Decimals): 0.4724
Country of Origin: UNITED STATES

MPN: 4121574
PKG QTY: 10 PCS

Location: SUR-STC-284
