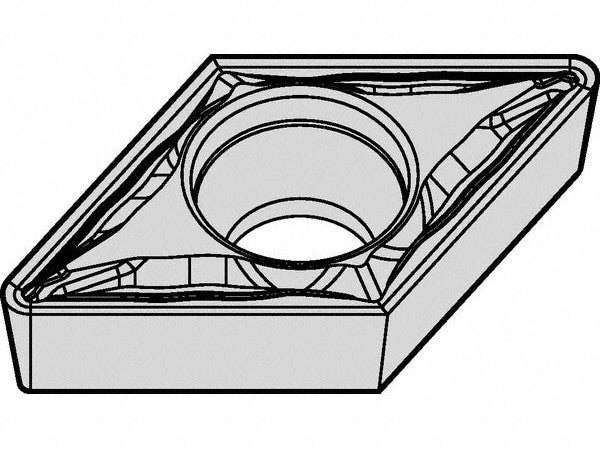

DCMT 2152FP KC5010 Carbide Turning Inserts (10 PCS) Kennametal 3769357

Kennametal
DCMT 2152FP KC5010 Carbide Turning Inserts (10 PCS) 3769357

Specs
Insert Style: DCMT
ISO Size Code: 070208
ANSI Size Code: 21.52
Insert Shape: D - Diamond (Rhombic) 55-Deg
Included Angle: 55
Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313
Insert Material: Carbide
Manufacturer Grade: KCS10
Coating/Finish: AlTiN
Relief Angle: 7
Wiper Edge: No
Insert Thickness (Decimal Inch): 0.0938
Insert Thickness (Inch): 3/32
Insert Hand: Neutral
Series: Screw-On
Grade Characteristics: Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Chip Breaker Operation: Finishing
Number Of Cutting Edges: 2
Side Clearance: Positive
Insert Shape Code: D
Hole Diameter (Decimal Inch): 0.1102
Hole Diameter (Mm) ( - 0 Decimals): 2.80
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ISO Insert Code: DCMT070208
ANSI Insert Code: DCMT21.52
Insert Holding Method: Screw
Width (Inch): 1/4
Clearance Code: C
Tolerance Code: M
Coating Process: PVD
Length Range (Decimal Inch): 0.6000 - 0.6500
Rake: Positive
Insert Length (Decimal Inch): 0.6104
Insert Length (mm): 7.75
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium
Primary Workpiece Material Code: P; S; H; K; M; N
Standards: ISO; ANSI
Manufacturers Catalog Number: 3769357
Material Grade: C3; C4
Coating Classification: PVD
Chip Breaker: FP
Rake Angle: 15
Cutting Edge Style: Honed
Industry Standard Number: DCMT2152FP
Width (Decimal Inch - 4 Decimals): 0.2500
Multi-Use Tool: Yes
UNSPSC Code: 23242105
Insert Size Code: 2152
Country of Origin: UNITED STATES

MPN: 3769357
PKG QTY: 10 PCS
