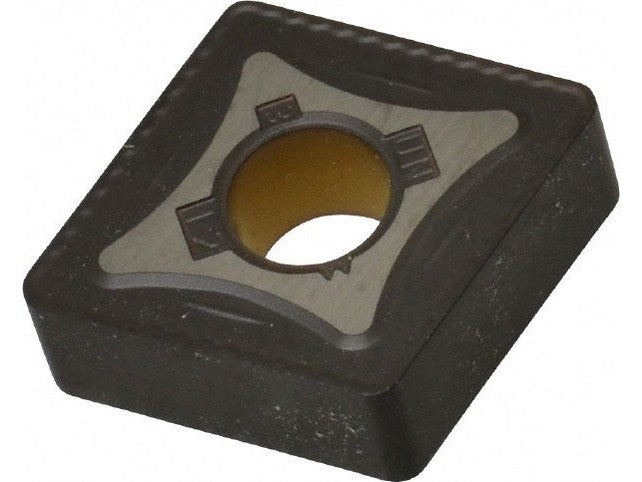

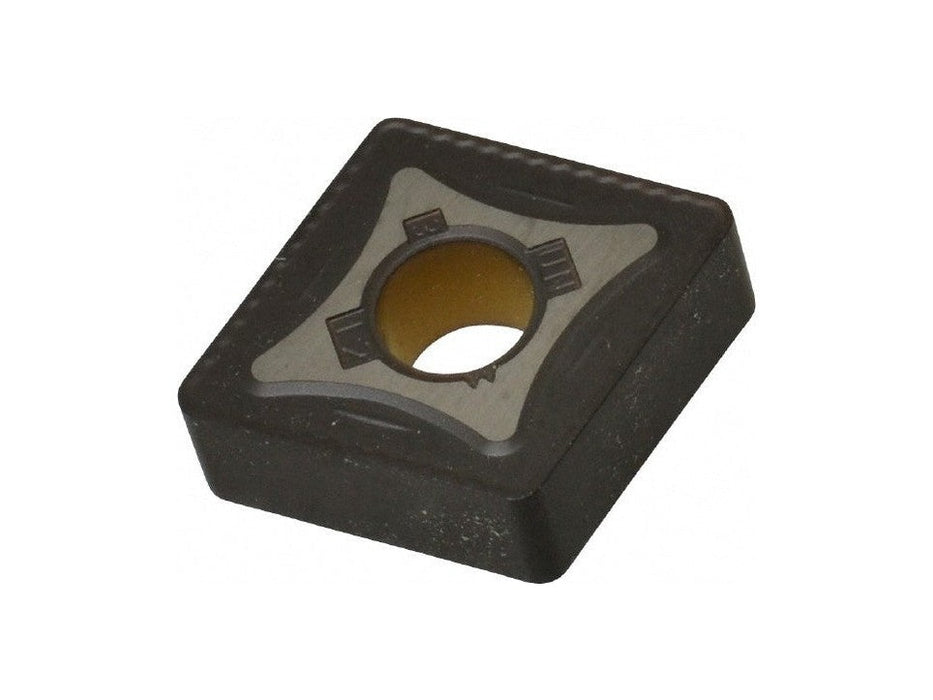

Kennametal CNMG 543UN KCK15 Carbide Turning Inserts (10 PCS) 3752182

Kennametal
CNMG 543UN KCK15 Carbide Turning Inserts (10 PCS) 3752182

Specs
Insert Style: CNMG
ISO Size Code: 160612
ANSI Size Code: 543
Insert Shape: C - Diamond (Rhombic) 80-Deg
Included Angle: 80
Inscribed Circle (Decimal Inch): 0.6250
Inscribed Circle (Inch): 5/8
Corner Radius (Inch): 3/64
Corner Radius (Decimal Inch): 0.0469
Insert Material: Carbide
Manufacturer Grade: KCK15
Coating/Finish: TiCN; TiN; Al2O3
Relief Angle: 0    Wiper Edge: No
Insert Thickness (Decimal Inch): 0.2500
Insert Thickness (Inch): 1/4
Insert Hand: Neutral
Series: KENLOC
Grade Characteristics: Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance
Chip Breaker Operation: Medium Machining; Roughing
Number Of Cutting Edges: 4
Side Clearance: Negative
Insert Shape Code: C
Hole Diameter (Decimal Inch): 0.2500
Hole Diameter (Mm) ( - 0 Decimals): 6.35
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ISO Insert Code: CNMG160612
ANSI Insert Code: CNMG543
Insert Holding Method: Pin; Clamp
Width (Inch): 5/8
Clearance Code: N
Tolerance Code: M
Coating Process: MTCVD
Length Range (Decimal Inch): 0.6000 - 0.6500
Rake: Negative
Insert Length (Decimal Inch): 0.6346
Insert Length (mm): 16.12
Primary Workpiece Material: Cast Iron; Steel
Primary Workpiece Material Code: P; K
Secondary Workpiece Material Code: N
Standards: ISO; ANSI
Manufacturers Catalog Number: 3752182
Material Grade: C3; C4
Proprietary Coating Designation: Multilayer Coating
Coating Classification: CVD
Chip Breaker: UN
Rake Angle: 0
Cutting Edge Style: Honed; Chamfered
Industry Standard Number: CNMG543UN
Width (Decimal Inch - 4 Decimals): 0.6250
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Insert Size Code: 543

MPN: 3752182
PKG QTY: 10 PCS

Location: SUR-STC-132
