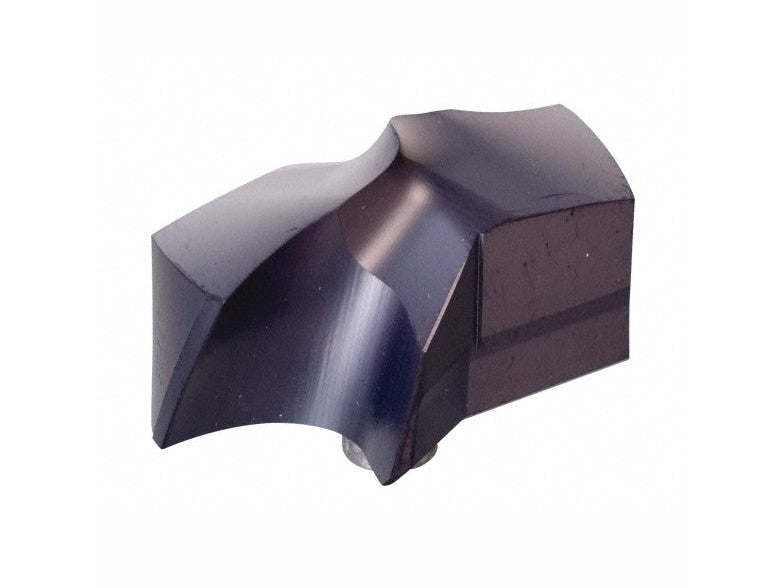

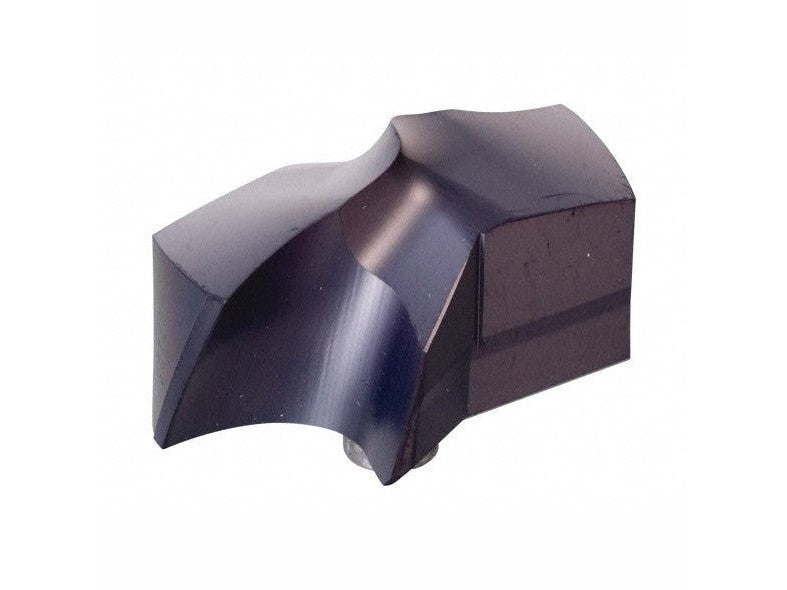

Kennametal KSEM2800HPGM KC7315 Replaceable Drill Tip, Carbide, 2499798
Description
Kennametal
Replaceable Drill Tip KSEM2800HPGM KC7315, 1.1024" Dia, 28.00 mm Dia, 140 deg Point, KC7315, Seat Size 6, TiAlN Finish, Through Coolant, 2499798
Specs
Cutting Diameter (Decimal Inch): 1.1024
Cutting Diameter (mm): 28.00
Tip Material: Solid Carbide
Manufacturer Grade: KC7315
Material Grade: Fine Grain
Series: KSEM
Coating Process: PVD
Insert Geometry: HPG
Insert Seat Size: 6
Functional Length (Decimal Inch): 0.5510
Primary Workpiece Material: Cast Iron; Steel
Primary Workpiece Material Code: P; K
Height (mm): 14.00
Overall Length/Projection (Decimal Inch): 0.5510
Drill Point Angle: 140
Flute Type: Helical
Insert Holding Method: Clamp
ISO Number: KSEM2800HPGM
Coolant Through: Yes
Flute Length (mm): 14.00
Point Type: Standard
Spiral Type: Regular Spiral
Style: KSEM
UNSPSC Code: 23242105
Applications: Drilling
Coating/Finish: TiAlN
Included Angle Degree: 140
Number Of Flutes: 2
Country of Origin: Germany
MPN: 2499798
PKG QTY: 1 PC
Location: SUR-STC-322
