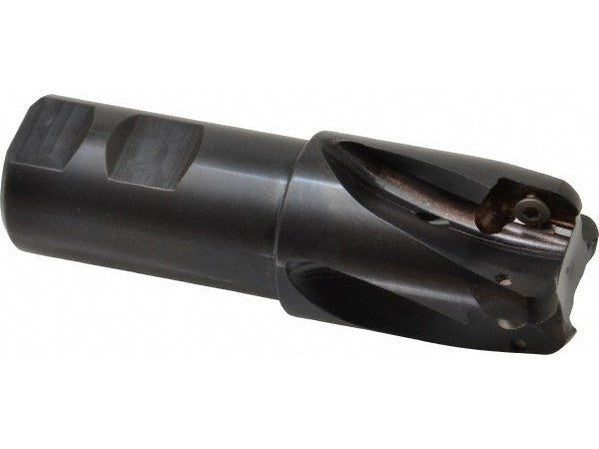

Kennametal Indexable End Mill, 4FL 1-1/2" Cut Dia, 1-1/4" Weldon Shank, 2267628

Kennametal
Indexable Square-Shoulder End Mill: M1D150E1804W125L225R, 1-1/2" Cut Dia, 0.64" Max Depth of Cut, 1-1/4" Dia Weldon Flat Shank
Uses (4) EC18..;EP18.. Inserts, 4.468" OAL

Specs
Cutting Diameter: 1.5000 in
Cutting Diameter: 1-1/2
Overall Length (Decimal Inch): 4.4680
Maximum Depth of Cut (Decimal Inch): 0.6400
Shank Type: Weldon Flat
Shank Diameter (Decimal Inch): 1.2500
Shank Diameter (Inch): 1-1/4
Insert Holding Method: Screw
Lead Angle: 0
Head Length (Decimal Inch): 2.188
Maximum RPM: 29020
Insert Compatibility: EC18..; EP18.. (Carbide inserts not included)
UNSPSC Code: 27112803
ISO Number: M1D150E1804W125L225R
Number Of Flutes: 4
Coolant Through    No

MPN: 2267628
PKG QTY: 1 Piece
