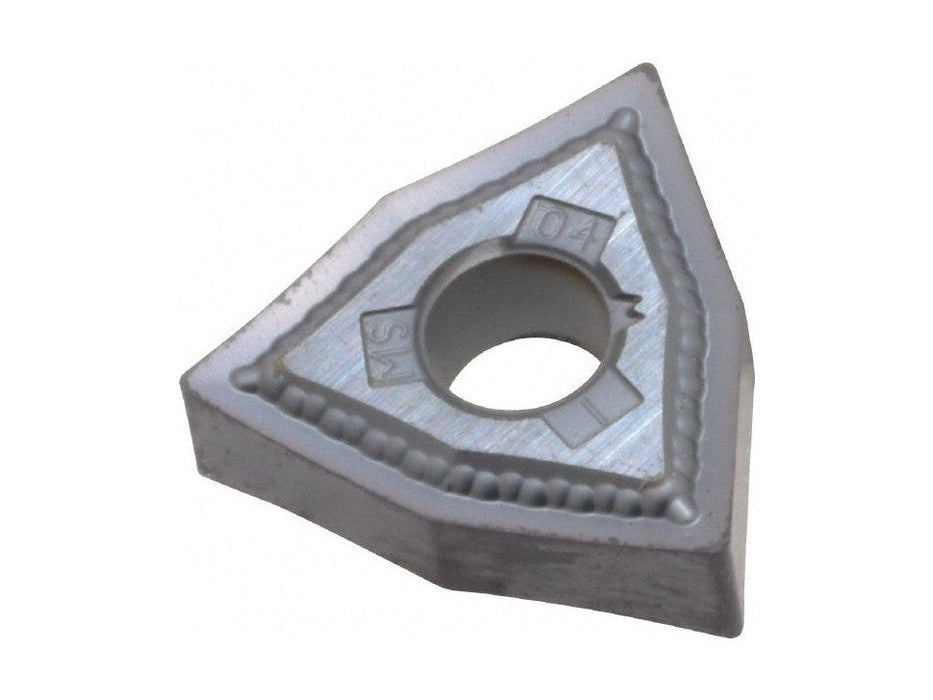

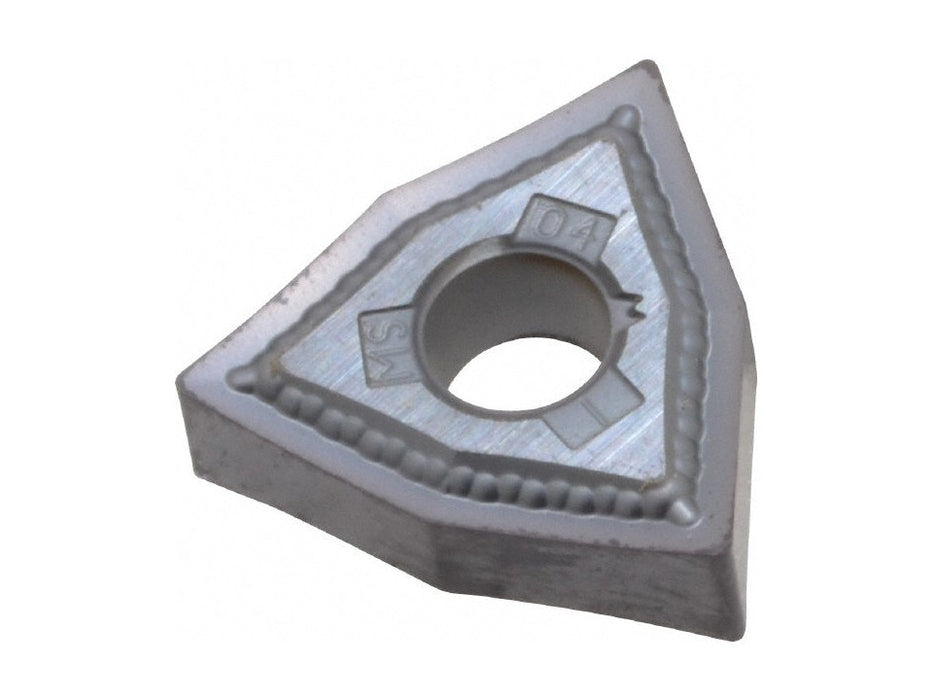

WNMG 431MS KC5510 Carbide Turning Inserts (10 PCS) Kennametal 2244917

Kennametal
WNMG 431MS KC5510 Carbide Turning Inserts (10 PCS) 2244917

Specs
Specifications
Insert Style: WNMG
ISO Size Code: 080404
ANSI Size Code: 431
Insert Shape: W - Trigon 80-Deg
Included Angle: 80
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156
Insert Material: Carbide
Manufacturer Grade: KC5010
Coating/Finish: TiAlN
Relief Angle: 0
Wiper Edge: No
Insert Thickness (Decimal Inch): 0.1875
Insert Thickness (Inch): 3/16
Insert Hand: Neutral
Series: KENLOC
Operation: Medium Machining; Roughing
Number Of Cutting Edges: 6
Side Clearance: Negative
Insert Shape Code: W
Hole Diameter (Decimal Inch): 0.2031
Hole Diameter (Mm) ( - 0 Decimals): 5.16
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ISO Insert Code: WNMG080404
ANSI Insert Code: WNMG431
Insert Holding Method: Pin; Clamp
Clearance Code: N
Tolerance Code: M
Coating Process: PVD
Length Range (Decimal Inch): 0.6500 - 0.7000
Rake: Negative    Insert Length (Decimal Inch): 0.6840
Insert Length (mm): 8.69
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; K; M; N
Secondary Workpiece Material Code: M
Standards: ISO; ANSI
Manufacturers Catalog Number: 2244917
Material Grade: C3; C4
Coating Classification: PVD
Chip Breaker: MS
Rake Angle: 13
Cutting Edge Style: Honed
Industry Standard Number: WNMG431MS
Width (Decimal Inch - 4 Decimals): 0.6840
Multi-Use Tool: Yes
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Insert Size Code: 431
Country of Origin: UNITED STATES

MPN: 2244917
PKG QTY: 10 PCS
