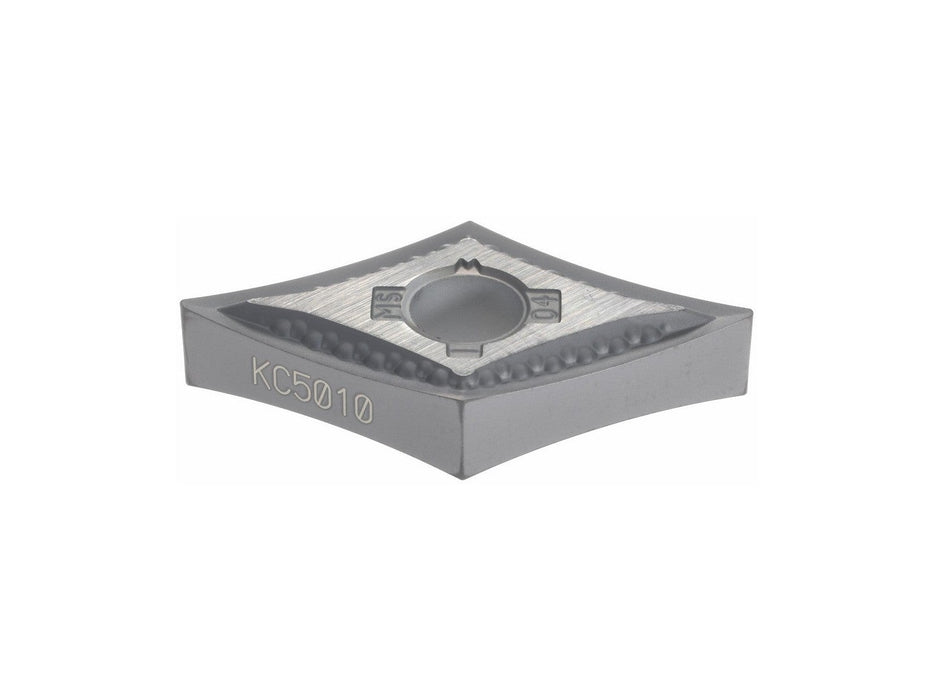

DNMG 431MS KC5010 Carbide Turning Inserts (10 PCS) Kennametal 2229661

Kennametal
DNMG 431MS KC5010, Carbide Inserts, TiAlN Finish, Neutral, 15.50 mm Long, 55 deg D - Diamond (Rhombic) 55-Deg, Series KENLOC,  2229661 (10 PCS)

Specs
Insert Style: DNMG
ISO Size Code: 150404
ANSI Size Code: 431
Insert Shape: D - Diamond (Rhombic) 55-Deg
Included Angle: 55
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156
Insert Material: Carbide
Manufacturer Grade: KC5010
Coating/Finish: TiAlN
Relief Angle: 0
Wiper Edge: No
Insert Thickness (Decimal Inch): 0.1875
Insert Thickness (Inch): 3/16
Insert Hand: Neutral
Series: KENLOC
Kennametal Grade KC5010: Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Chip Breaker Operation    Medium Machining; Roughing
Number Of Cutting Edges: 4
Side Clearance: Negative
Hole Diameter (Decimal Inch): 0.2031
Hole Diameter (Mm) ( - 0 Decimals): 5.16
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ISO Insert Code: DNMG150404
ANSI Insert Code: DNMG431
Insert Holding Method: Pin; Clamp
Country of Origin: UNITED STATES

MPN: 2229661
PKG QTY: 10 PCS
